Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADL32VHC-100MPOC INDUCTOR, 10 UH, EIA 1210 |
3,272 | - |
|
Datasheet | ADL32VHC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1 A | 950mA | Shielded | 310mOhm Max | - | 110MHz | AEC-Q200 | 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
ADM32FSC-220MINDUCTORS FOR POWER OVER COAXIAL |
2,583 | - |
|
Datasheet | ADM32FSC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 740 mA | 740mA | Shielded | 600mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.154" L x 0.098" W (3.90mm x 2.50mm) | 0.098" (2.50mm) |
|

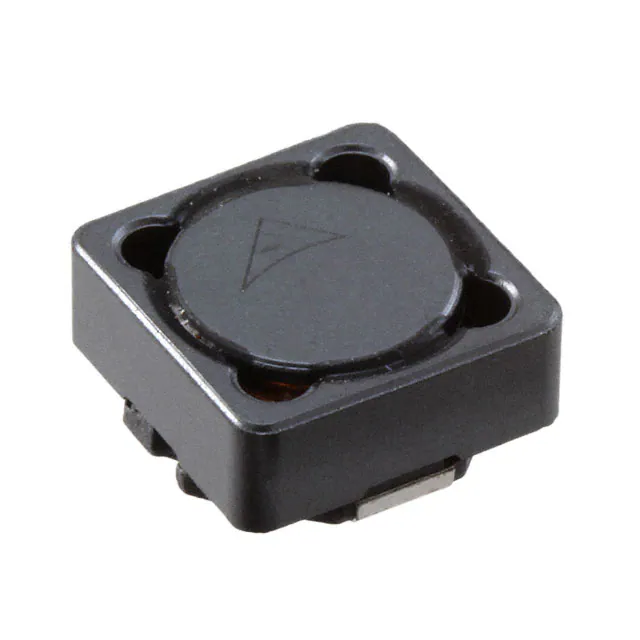

B82464P4223M000FIXED IND 22UH 2.25A 52 MOHM SMD |
344 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4473M000FIXED IND 47UH 1.55A 95 MOHM SMD |
6,887 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.55 A | 1.8A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4332M000FIXED IND 3.3UH 5.5A 12 MOHM SMD |
1,327 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | 5.9A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464P4103M000FIXED IND 10UH 3.4A 30 MOHM SMD |
1,095 | - |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
PIS150H-471MFIXED IND 470UH 1.81A 0.25OHM SM |
390 | - |
|
Datasheet | PIS150H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 1.81 A | 2.3A | Shielded | 250mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.571" (14.50mm) |
|

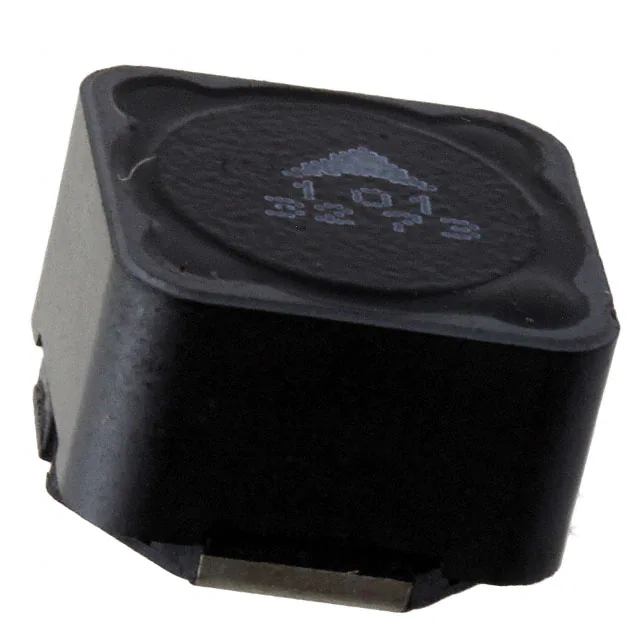

B82477R4103M100FIXED IND 10UH 6.2A 18.5MOHM SMD |
186 | - |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.2 A | 8.75A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4223M100FIXED IND 22UH 4.45A 32 MOHM SMD |
3,984 | - |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.45 A | 6.1A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4104M100FIXED IND 100UH 2.35A 120MOHM SM |
6,167 | - |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.35 A | 2.9A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
