Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144F2333J000FIXED IND 33UH 1.9A 0.22OHM TH |
972 | - |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.9 A | 1.65A | Unshielded | 220mOhm Max | 40 @ 252kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144B2104J000FIXED IND 100UH 1.3A 460 MOHM TH |
1,838 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 1.3 A | 950mA | Unshielded | 460mOhm Max | 40 @ 79.6kHz | 5.4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2473J000FIXED IND 47UH 1.7A 270 MOHM TH |
501 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 1.7 A | 1.4A | Unshielded | 270mOhm Max | 40 @ 252kHz | 7.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144F2682K000FIXED IND 6.8UH 2.75A 0.095OHM |
393 | - |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.75 A | 3.5A | Unshielded | 95mOhm Max | 50 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144B2224J000FIXED IND 220UH 900MA 1.01OHM TH |
1,967 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 900 mA | 650mA | Unshielded | 1.01Ohm Max | 40 @ 79.6kHz | 3.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2124J000FIXED IND 120UH 1.1A 600 MOHM TH |
556 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 1.1 A | 850mA | Unshielded | 600mOhm Max | 40 @ 79.6kHz | 4.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

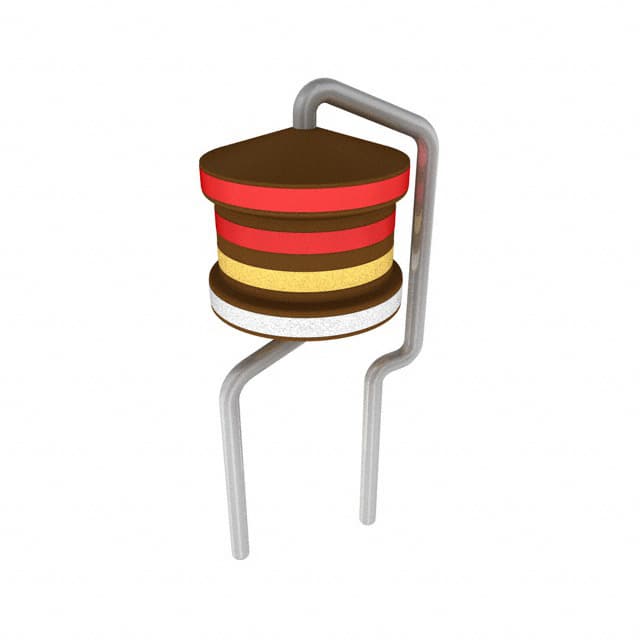

B82144B2222K000FIXED IND 2.2UH 3.65A 55 MOHM TH |
643 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.65 A | 6A | Unshielded | 55mOhm Max | 60 @ 2.52MHz | 140MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144F2332K000FIXED IND 3.3UH 3.5A 0.065OHM TH |
590 | - |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.5 A | 5A | Unshielded | 65mOhm Max | 60 @ 2.52MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

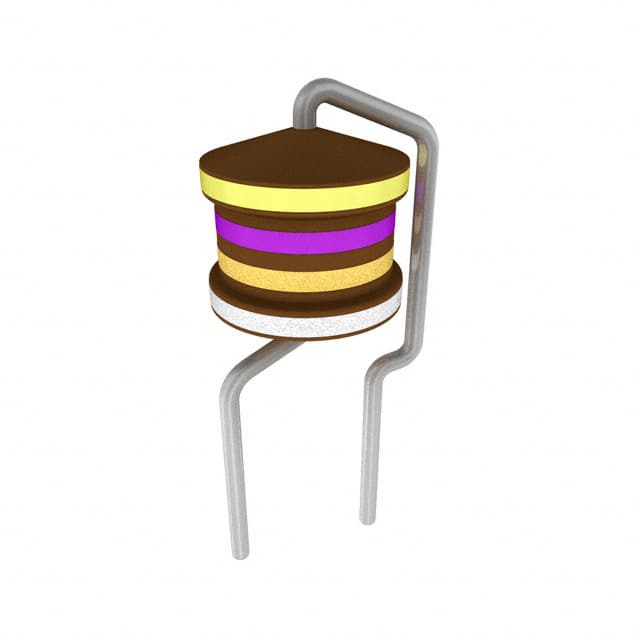

B82144B2472K000FIXED IND 4.7UH 3.05A 80 MOHM TH |
657 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.05 A | 4A | Unshielded | 80mOhm Max | 50 @ 2.52MHz | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2272K000FIXED IND 2.7UH 3.55A 60 MOHM TH |
983 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 3.55 A | 5.4A | Unshielded | 60mOhm Max | 60 @ 2.52MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
