Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP1616ABER1R2M11FIXED IND 1.2UH 3.75A 58.5 MOHM |
10,941 | - |
|
Datasheet | IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 3.75 A | 3.75A | Shielded | 58.5mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|

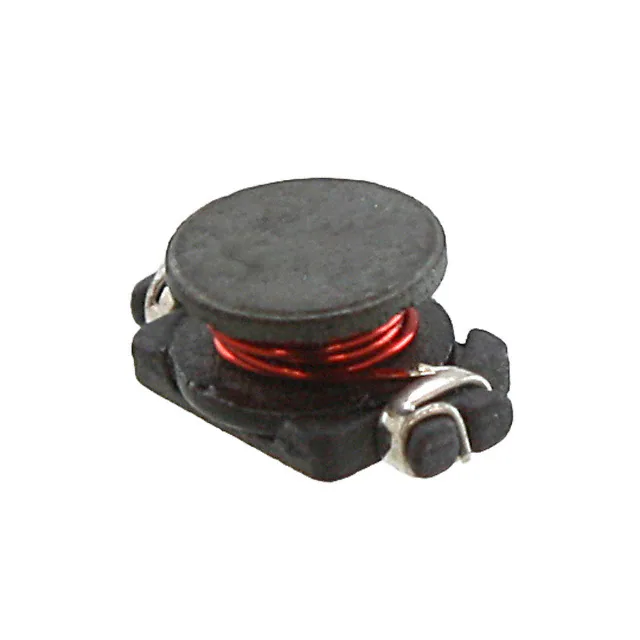

P0770.472NLTFIXED IND 4.7UH 1.5A 90 MOHM SMD |
5,559 | - |
|
Datasheet | P0770NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA5404.682NLTFIXED IND 6.8UH 5.5A 51.5MOHM SM |
3,966 | - |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.5 A | 8.5A | Shielded | 51.5mOhm Max | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5404.103NLTFIXED IND 10UH 3.8A 69 MOHM SMD |
3,725 | - |
|
Datasheet | PA5404 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.8 A | 7.5A | Shielded | 69mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
SRP3020TA-8R2MFIXED IND 8.2UH 1.6A 390MOHM SMD |
2,742 | - |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 1.6 A | 1.9A | Shielded | 390mOhm Max | 10 @ 100kHz | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
P0250.105NLTFIXED IND 1MH 560MA 1.8 OHM SMD |
2,433 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±15% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
DR1050-271-RFIXED IND 270UH 960MA 513MOHM SM |
719 | - |
|
Datasheet | DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±30% | 960 mA | 900mA | Shielded | 513mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
SRR1208-151KLFIXED IND 150UH 1.3A 240MOHM SMD |
694 | - |
|
Datasheet | SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.3 A | 1.72A | Shielded | 240mOhm Max | 14 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRP3020TA-R10YFIXED IND 100NH 10.5A 9 MOHM SMD |
658 | - |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 nH | ±30% | 10.5 A | 14A | Shielded | 9mOhm Max | 5 @ 100kHz | 340MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
SRP3020TA-R22YFIXED IND 220NH 9A 14 MOHM SMD |
468 | - |
|
Datasheet | SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±30% | 9 A | 11.2A | Shielded | 14mOhm Max | 5 @ 100kHz | 185MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
|
DR1050-6R8-RFIXED IND 6.8UH 5.45A 16.5 MOHM |
465 | - |
|
Datasheet | DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.45 A | 5.8A | Shielded | 16.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
1mm.jpg "744383230082")
|
744383230082FIXED IND 820NH 2.6A 69 MOHM SMD |
8,901 | - |
|
Datasheet | WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±30% | 2.6 A | 4.25A | Shielded | 69mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRU1038A-2R2YFIXED IND 2.2UH 6.8A 10.5MOHM SM |
7,818 | - |
|
Datasheet | SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.8 A | 6.5A | Shielded | 10.5mOhm Max | 12 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038A-150YFIXED IND 15UH 2.8A 50 MOHM SMD |
6,258 | - |
|
Datasheet | SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.8 A | 2.7A | Shielded | 50mOhm Max | 24 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038A-3R5YFIXED IND 3.5UH 5.5A 15 MOHM SMD |
6,107 | - |
|
Datasheet | SRU1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±30% | 5.5 A | 5.5A | Shielded | 15mOhm Max | 14 @ 7.96MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
784383240047WE-MAIA SMT POWER INDUCTOR 0.47 |
5,961 | - |
|
Datasheet | WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 3.4 A | 6.25A | Shielded | 40mOhm Max | - | 145MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRU1028A-100YFIXED IND 10UH 2.8A 53 MOHM SMD |
4,818 | - |
|
Datasheet | SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.8 A | 2.4A | Shielded | 53mOhm Max | 20 @ 2.52MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SRR6040A-5R0YFIXED IND 5UH 2.9A 25 MOHM SMD |
4,721 | - |
|
Datasheet | SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 2.9 A | 2.63A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
74404041010FIXED IND 1UH 2.52A 41 MOHM SMD |
4,410 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±30% | 2.52 A | 3.35A | Shielded | 41mOhm | - | 142MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.047" (1.20mm) |
|
|
SRR6040A-820MFIXED IND 82UH 700MA 290MOHM SMD |
4,000 | - |
|
Datasheet | SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 700 mA | 630mA | Shielded | 290mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
