Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1054L150FIXED IND 15UH 6.7A 39.1MOHM SMD |
990 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 6.7 A | 11A | Shielded | 39.1mOhm Max | - | 7.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
HCMA1104-100-RFIXED IND 10UH 7.5A 30 MOHM SMD |
809 | - |
|
Datasheet | HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 7.5 A | 8.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP1270-R47MFIXED IND 470NH 41A 1.2 MOHM SMD |
605 | - |
|
Datasheet | SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 470 nH | ±20% | 41 A | 65A | Shielded | 1.2mOhm Max | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
LD2-151-RFIXED IND 150UH 1.23A 640MOHM SM |
450 | - |
|
Datasheet | LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.23 A | 950mA | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
SRP1270-R68MFIXED IND 680NH 35A 1.6 MOHM SMD |
360 | - |
|
Datasheet | SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±20% | 35 A | 60A | Shielded | 1.6mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
MPIA4020V2-R33-RFIXED IND 330NH 10A 9 MOHM SMD |
295 | - |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 10 A | 12A | Shielded | 9mOhm Max | - | 113MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MHE06036R8M-10HIGH CURRENT LOW DCR POWER INDUC |
11,929 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.2 A | 9.7A | Shielded | 44.5mOhm Max | - | 16.5MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06031R0M-10HIGH CURRENT LOW DCR POWER INDUC |
7,893 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17.1 A | 20.7A | Shielded | 5.95mOhm Max | - | 48MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06032R2M-10HIGH CURRENT LOW DCR POWER INDUC |
3,973 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 9.9 A | 14.3A | Shielded | 13.1mOhm Max | - | 32MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06031R8M-10HIGH CURRENT LOW DCR POWER INDUC |
3,936 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 12.4 A | 16.4A | Shielded | 9.5mOhm Max | - | 34MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06033R3M-10HIGH CURRENT LOW DCR POWER INDUC |
2,673 | - |
|
Datasheet | MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 8 A | 11A | Shielded | 19.2mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
SD52-150-RFIXED IND 15UH 970MA 161.8 MOHM |
2,200 | - |
|
Datasheet | SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 970 mA | 880mA | Shielded | 161.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
MPL-AL4020-R68FIXED IND 680NH 8.7A 7.5MOHM SMD |
2,125 | - |
|
Datasheet | MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 680 nH | - | 8.7 A | 11A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
PG0871.103NLTFIXED IND 10.5UH 4.7A 31.5 MOHM |
1,369 | - |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10.5 µH | ±20% | 4.7 A | 6.3A | Shielded | 31.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
HCM1A0805V2-4R7-RIND MP 4.7UH 8A 2 PADS SMT |
1,348 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 8 A | 8A | Shielded | 15.6mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|
CMLS104T-3R3MSFIXED IND 3.3UH 10.7A 11.8 MOHM |
1,225 | - |
|
Datasheet | CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 10.7 A | 21A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
MDH10060C-100MA=P3FIXED IND 10UH 3.8A 17 MOHM SMD |
990 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4.1A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

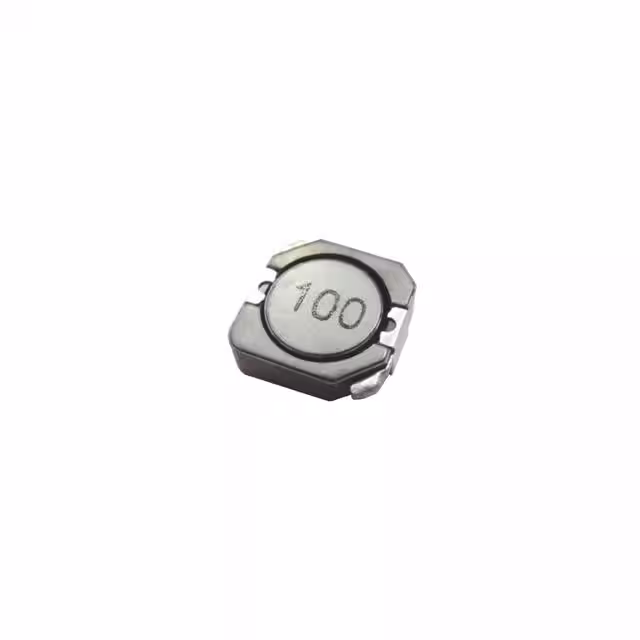

APSA00070748681M00FIXED IND 680UH 270MA 1.77OHM SM |
973 | - |
|
Datasheet | APSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 270 mA | 200mA | Shielded | 1.77Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
MDH10060C-220MA=P3FIXED IND 22UH 2.7A 40 MOHM SMD |
940 | - |
|
Datasheet | MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 2.8A | Shielded | 40mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
HCM1A0805V2-470-RIND MP 47UH 2.6A 2 PADS SMT |
456 | - |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 47 µH | ±20% | 2.5 A | 2.6A | Shielded | 137mOhm Max | - | 4.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
