Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74458002FIXED IND 2.2UH 7.1A 14 MOHM SMD |
127 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 7.1 A | 20.3A | Unshielded | 14mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
74457012FIXED IND 1.2UH 15A 4 MOHM SMD |
125 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 15 A | 30A | Unshielded | 4mOhm Max | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
784776068FIXED IND 6.8UH 4.4A 19 MOHM SMD |
104 | - |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.4 A | 5A | Unshielded | 19mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
SD25-221-RFIXED IND 220UH 446MA 1.34OHM SM |
2,325 | - |
|
Datasheet | SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 446 mA | 268mA | Shielded | 1.34Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
FP1007R1-R12-RFIXED IND 120NH 60A 0.29MOHM SMD |
2,050 | - |
|
Datasheet | FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 60 A | 81A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
PA2729.333NLFIXED IND 32.9UH 6.7A 18.5 MOHM |
1,047 | - |
|
Datasheet | PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 32.9 µH | ±15% | 6.7 A | 8.4A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
VLBU9664100LT-R12LFIXED IND 120NH 75A 0.125MOHM SM |
926 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 75 A | 90A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|

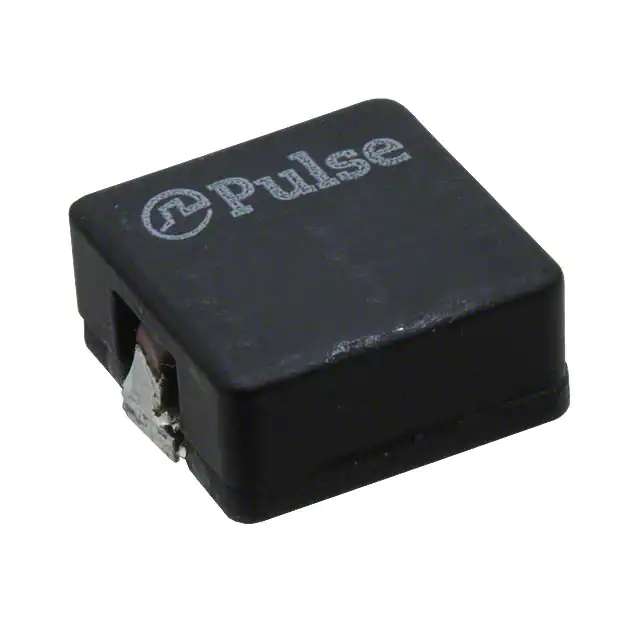

PG0077.282NLTFIXED IND 2.8UH 19A 4.2 MOHM SMD |
630 | - |
|
Datasheet | PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.8 µH | ±20% | 19 A | 20A | Unshielded | 4.2mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|
MPX1D1250L1R0FIXED IND 1UH 28.8A 2.6 MOHM SMD |
497 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 28.8 A | 43A | Shielded | 2.6mOhm Max | - | 34MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
HCM1103-3R3-RFIXED IND 3.3UH 9A 16 MOHM SMD |
146 | - |
|
Datasheet | HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 9 A | 14A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
7687779221FIXED IND 220UH 560MA 1.3OHM SMD |
3,904 | - |
|
Datasheet | WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 560 mA | 500mA | Shielded | 1.3Ohm Max | - | 4.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
SPM10054T-R68M-HZFIXED IND 680NH 32A 2.09MOHM SMD |
356 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 680 nH | ±20% | 32 A | 21.7A | Shielded | 2.09mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
PG0871.461NLTFIXED IND 460NH 24A 1.5 MOHM SMD |
971 | - |
|
Datasheet | PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 460 nH | ±20% | 24 A | 28A | Shielded | 1.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
SLF12575T-6R8N5R9-HFIXED IND 6.8UH 5.9A 15.72 MOHM |
803 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.9 A | 7.2A | Shielded | 15.72mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SPM10054T-150M-HZFIXED IND 15UH 8.6A 33.93MOHM SM |
720 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 15 µH | ±20% | 8.6 A | 3.6A | Shielded | 33.93mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
FP1308-R44-RFIXED IND 440NH 68A 0.24MOHM SMD |
398 | - |
|
Datasheet | FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±10% | 68 A | 32A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
|
SLF12575T-3R9N6R7-HFIXED IND 3.9UH 6.7A 12.48 MOHM |
383 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 6.7 A | 9A | Shielded | 12.48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
IHLP5050FDER3R3MA1IHLP-5050FD-A1 3.3 20% ER E3 |
125 | - |
|
Datasheet | IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 18 A | 35A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
MPC1040LR88CFIXED IND 880NH 17A 2.3 MOHM SMD |
2,790 | - |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 880 nH | ±20% | 17 A | 24A | Shielded | 2.3mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
FP2-D120-RFIXED IND 120NH 37A 0.26MOHM SMD |
1,659 | - |
|
Datasheet | FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 37 A | 18A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
