Fuses
Compare the current Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0680L5000-05FUSE BRD MNT 5A 125VAC/VDC 2SMD |
25,975 | - |
|
Datasheet | 0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Slow Blow | 50A AC, 100A DC | 37.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
|
0680L9100-05FUSE BRD MNT 10A 50VAC 75VDC SMD |
17,992 | - |
|
Datasheet | 0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 50 V | 75 V | Slow Blow | 100A AC, 500A DC | 170.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
|
0680L9120-05FUSE BRD MNT 12A 50VAC 75VDC SMD |
10,387 | - |
|
Datasheet | 0680L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 50 V | 75 V | Slow Blow | 100A AC, 500A DC | 244.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|

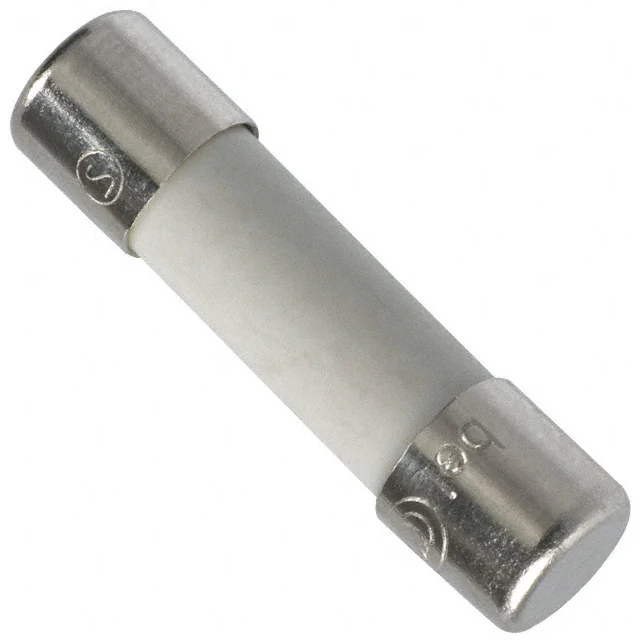

5HT 10-RFUSE CERAMIC 10A 250VAC 5X20MM |
44,754 | - |
|
Datasheet | 5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 1.5kA | 601.0 | CE, CSA, cURus, PSE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
0685P9300-01FUSE BOARD MOUNT 30A 50VDC 1206 |
29,483 | - |
|
Datasheet | 0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | - | 50 V | Fast Blow | 250A | 255.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) | |
|
0678L9300-02FUSE BRD MT 30A 250VAC 72VDC SMD |
164,824 | - |
|
Datasheet | 0678L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 250 V | 72 V | Medium Blow | 100A AC, 130A DC | 1000.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.125" H (9.80mm x 3.05mm x 3.18mm) | |
|
|
0678L9200-02FUSE BRD MT 20A 250VAC 72VDC SMD |
39,872 | - |
|
Datasheet | 0678L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 72 V | Medium Blow | 100A AC, 130A DC | 270.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.125" H (9.80mm x 3.05mm x 3.18mm) | |
|
0678H9200-02FUSE BRD MT 20A 250VAC 125VDC |
2,147 | - |
|
Datasheet | 0678H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 250 V | 125 V | - | 100A AC, 1.5kA DC | 420.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.120" H (9.80mm x 3.05mm x 3.05mm) | |
|
|
0678H9150-02FUSE BRD MT 15A 250VAC 125VDC |
1,526 | - |
|
Datasheet | 0678H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 250 V | 125 V | - | 100A AC, 1.5kA DC | 220.0 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.386" L x 0.120" W x 0.120" H (9.80mm x 3.05mm x 3.05mm) | |
|
|
0685P9500-01FUSE BOARD MOUNT 50A 32VDC 1206 |
4,867 | - |
|
Datasheet | 0685P | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | - | 32 V | Fast Blow | 200A | 500.0 | AEC-Q200, CE, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm) |
Fuses FAQ
How can I narrow the current Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
