IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSM100GB120DN2FE325HOSA1BSM100GB120DN2 - IGBT MODULE |
292 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM75GB120DLCHOSA1IGBT MOD 1200V 170A 690W |
2,636 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | 2 Independent | 1200 V | 170 A | 690 W | 2.6V @ 15V, 75A | 5 mA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FP40R12KT3BOSA1IGBT MOD 1200V 55A 210W |
2,621 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM15GP60BOSA1IGBT MODULE 600V 25A 100W |
3,588 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 25 A | 100 W | 2.45V @ 15V, 15A | 500 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

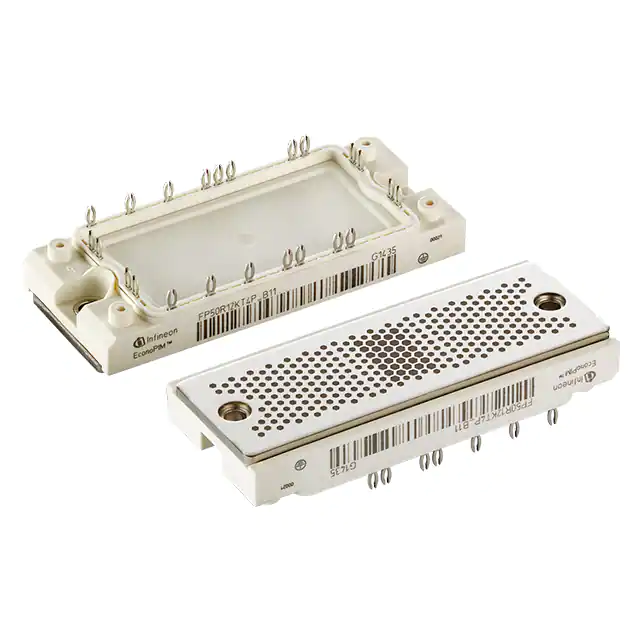

FP50R12KT4PB11BPSA1MOD IGBT LOW PWR ECONO2-4 |
8,078 | - |
|
Datasheet | EconoPIM™ 2 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP75R12N2T4PBPSA1IGBT MODULE LOW POWER ECONO |
3,625 | - |
|
Datasheet | EconoPIM™ 2 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF150R12KE3B8BDLA1IGBT MODULE |
33 | - |
|
Datasheet | - | Module | Bulk | Active | - | Half Bridge | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | AG-62MM |
|
F450R12KS4B11BOSA1IGBT MOD 1200V 70A 355W |
2,587 | - |
|
Datasheet | EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 70 A | 355 W | 3.75V @ 15V, 50A | 1 mA | 3.4 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
DF150R12RT4HOSA1IGBT MOD 1200V 150A 790W |
3,257 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Trench Field Stop | Single Chopper | 1200 V | 150 A | 790 W | 2.15V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
BSM75GB170DN2HOSA1IGBT MOD 1700V 110A 625W |
4,854 | - |
|
Datasheet | - | Module | Bulk | Obsolete | - | Half Bridge | 1700 V | 110 A | 625 W | 3.9V @ 15V, 75A | - | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
