IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
3 | - |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
3 | - |
|
Datasheet | PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
3 | - |
|
Datasheet | IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

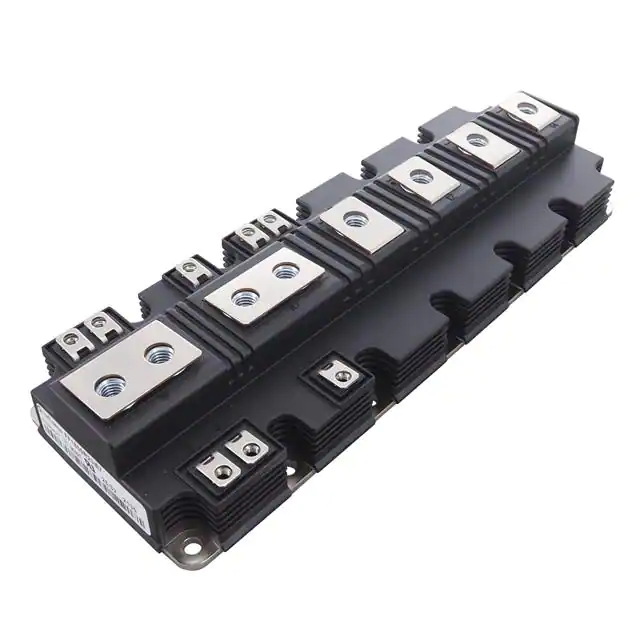

FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 |
2 | - |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
|
FF1800R23IE7PBPSA1IGBT MODULE |
2 | - |
|
Datasheet | PrimePACK™3+ B | Module | Bulk | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | PrimePACK™ 3+ |
|
FS20R06W1E3BOMA1IGBT MODULE 600V 35A 135W |
24 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS20R06W1E3B11BOMA1IGBT MODULE 600V 35A 135W |
32 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 600 V | 35 A | 135 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB30R06W1E3BOMA1IGBT MODULE 600V 39A 115W |
24 | - |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 39 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3B11BOMA1IGBT MODULE 600V 37A 115W |
24 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB20R06W1E3BOMA1IGBT MODULE 600V 29A 94W |
17 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 29 A | 94 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
