IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
7,245 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
8,510 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F |
2,877 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 |
2,359 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 |
8,855 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

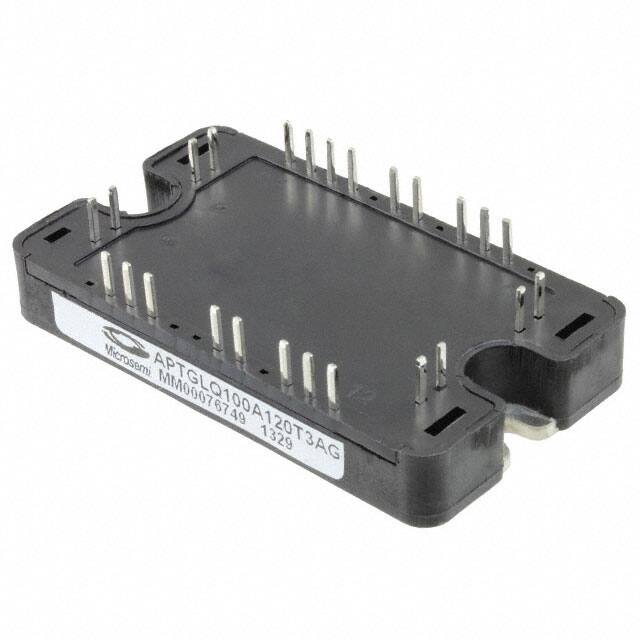

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 |
3,197 | - |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGT100SK170TGIGBT MODULE 1700V 150A 560W SP4 |
8,669 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Single | 1700 V | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50A170TGIGBT MODULE 1700V 75A 312W SP4 |
6,284 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT200DU60TGIGBT MODULE 600V 290A 625W SP4 |
8,810 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 600 V | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150DH60TGIGBT MODULE 600V 225A 480W SP4 |
5,701 | - |
|
Datasheet | - | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
