IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100TL-24NFIGBT MOD 1200V 100A 620W |
9,332 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 100 A | 620 W | 3V @ 15V, 100A | 1 mA | 17.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TU-24FIGBT MOD 1200V 75A 450W |
8,137 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Three Phase Inverter | 1200 V | 75 A | 450 W | 2.4V @ 15V, 75A | 1 mA | 29 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400DU-12FIGBT MOD 600V 400A 960W |
5,110 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 400 A | 960 W | 2.2V @ 15V, 400A | 1 mA | 110 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

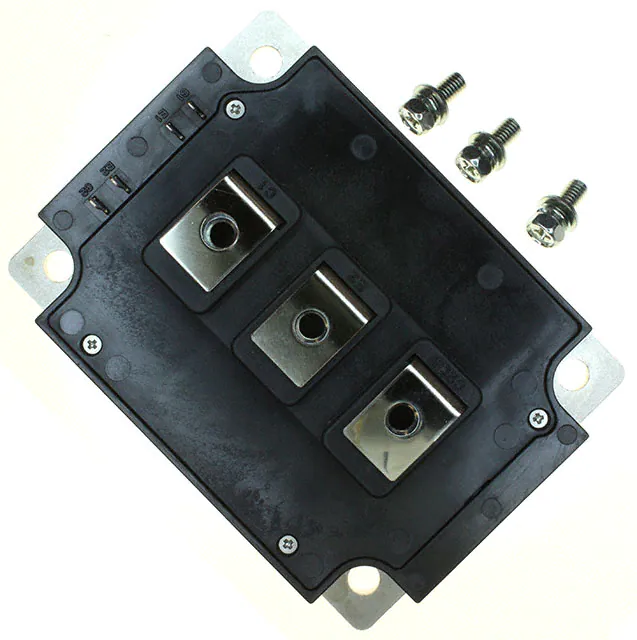

CM300DY-24NFIGBT MOD 1200V 300A 1130W |
5,093 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1130 W | 2.5V @ 15V, 300A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

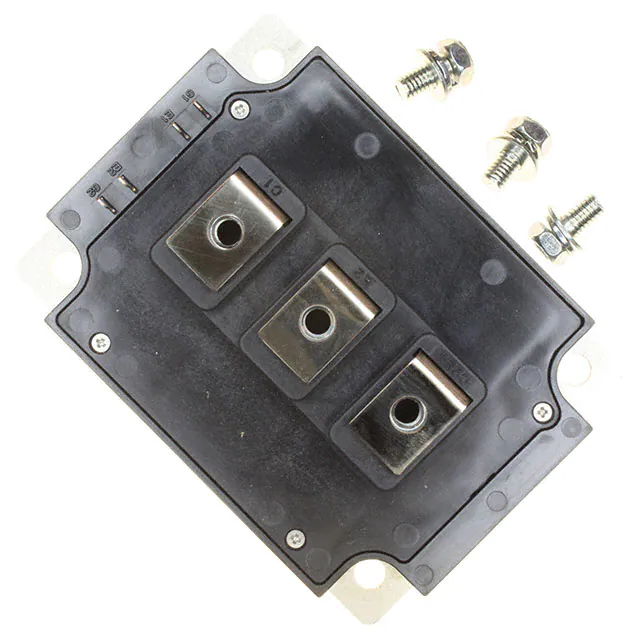

CM400DY-24AIGBT MOD 1200V 400A 2710W |
2,812 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 400 A | 2710 W | 3V @ 15V, 400A | 1 mA | 70 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

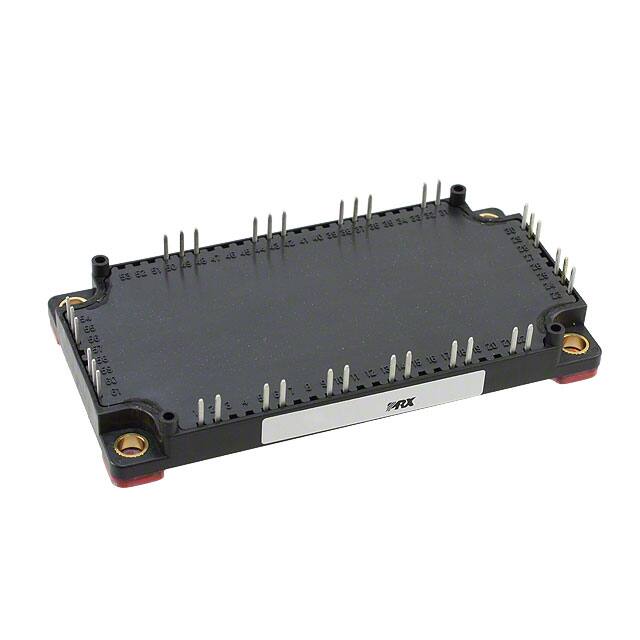

CM150TX-24SIGBT MOD 1200V 150A 1150W |
7,458 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 150 A | 1150 W | 2.15V @ 15V, 150A | 1 mA | 15 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MG300Q2YS60AIGBT MOD 1200V 300A 2800W |
4,493 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 300 A | 2800 W | 2.8V @ 15V, 300A | 1 mA | 21 nF @ 10 V | Standard | No | -20°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM75TU-24HIGBT MOD 1200V 75A 600W |
6,614 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 75 A | 600 W | 3.7V @ 15V, 75A | 1 mA | 11 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
CM400DU-12HIGBT MOD 600V 400A 1130W |
2,141 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 600 V | 400 A | 1130 W | 3V @ 15V, 400A | 1 mA | 35.2 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
CM300DU-24NFHIGBT MOD 1200V 300A 1130W |
4,012 | - |
|
Datasheet | IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 300 A | 1130 W | 6.5V @ 15V, 300A | 1 mA | 47 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
