IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2U12M12W2-F2ACEPACK 2 POWER MODULE, 3-LEVEL |
34 | - |
|
Datasheet | - | Module | Tray | Active | - | Three Level Inverter | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
STGE200NB60SIGBT MOD 600V 200A 600W ISOTOP |
81 | - |
|
Datasheet | PowerMESH™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 600 V | 200 A | 600 W | 1.6V @ 15V, 100A | 500 µA | 1.56 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP |
|
STGSH80HB65DAGLinear IC's |
46 | - |
|
Datasheet | HB | 9-PowerSMD | Bulk | Active | - | Half Bridge | 650 V | 83 A | 250 W | 2.1V @ 15V, 80A | - | 10450 pF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Surface Mount | 9-ACEPACK SMIT |
|

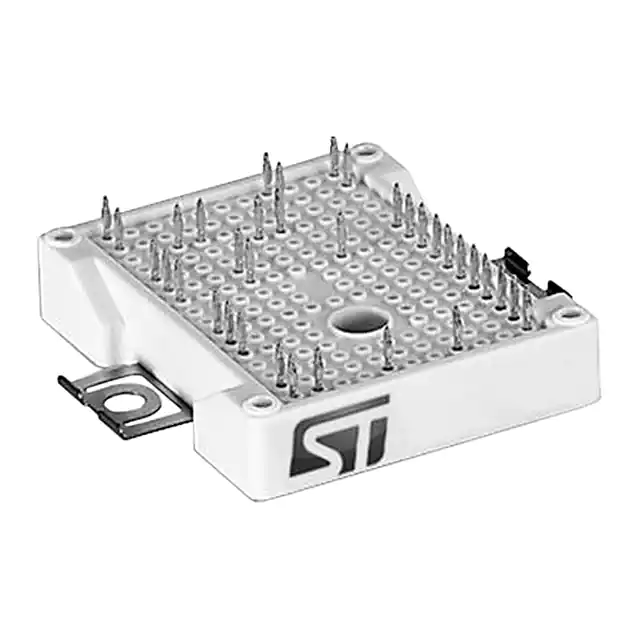

A2C25S12M3-FIGBT MOD 1200V 25A 197W ACEPACK2 |
2,175 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
A2F12M12W2-F1ACEPACK 2 POWER MODULE, FOURPACK |
21 | - |
|
Datasheet | - | Module | Tray | Active | - | Full Bridge | - | - | - | - | - | 7 nF @ 800 V | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
A1C15S12M3-FIGBT MOD 1200V 15A ACEPACK1 |
9,835 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 15 A | 142.8 W | 2.45V @ 15V, 15A | 100 µA | 985 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P25S12M3-FIGBT MOD 1200V 25A 197W ACEPACK1 |
9,764 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P50S65M2IGBT MOD 650V 50A 208W ACEPACK1 |
6,430 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1C15S12M3IGBT MOD 1200V 15A ACEPACK1 |
8,858 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 15 A | 142.8 W | 2.45V @ 15V, 15A | 100 µA | 985 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P35S12M3IGBT MOD 1200V 35A 250W ACEPACK1 |
6,440 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
