IGBT Modules
Compare the current IGBT Modules IGBTs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HGT1N30N60A4DIGBT, 96A, 600V, N-CHANNEL |
677 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 96 A | 255 W | 2.7V @ 15V, 30A | 250 µA | - | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|

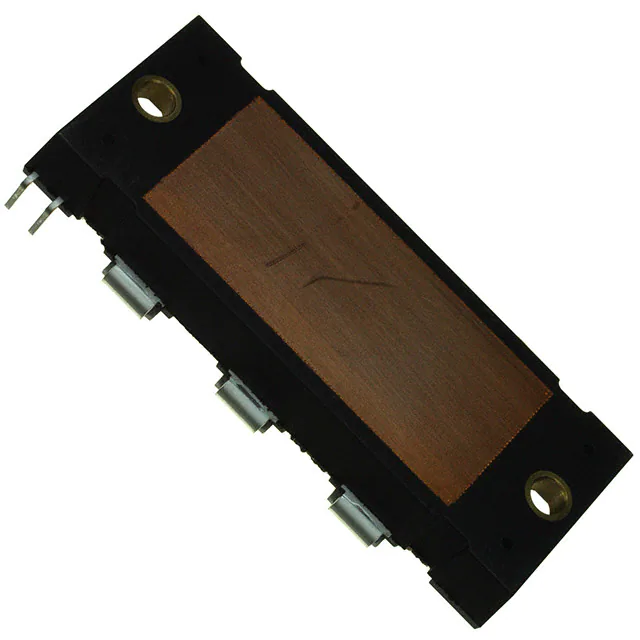

FP7G50US60IGBT |
2,076 | - |
|
Datasheet | Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 2.92 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|

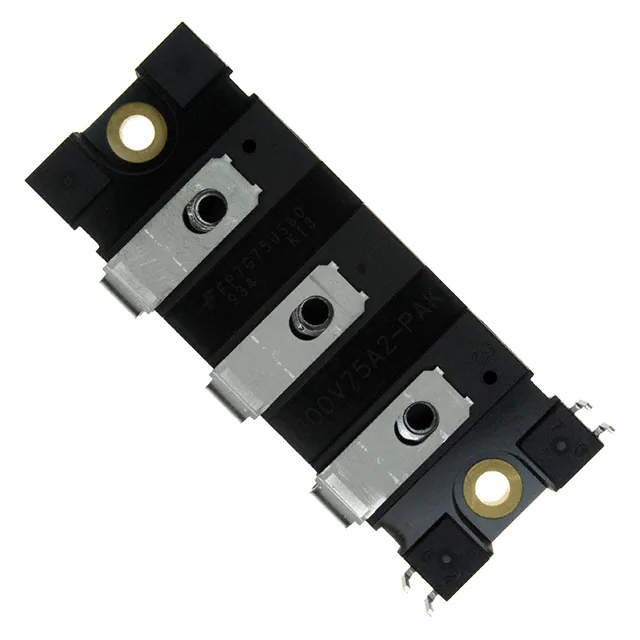

FP7G75US60IGBT |
2,882 | - |
|
Datasheet | Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
.JPG "FP7G100US60")
|
FP7G100US60IGBT, 100A, 600V, N-CHANNEL |
3,236 | - |
|
Datasheet | Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FPF2C8P2NL07AINSULATED GATE BIPOLAR TRANSISTO |
70 | - |
|
Datasheet | - | F2 Module | Bulk | Active | Field Stop | Three Phase | 650 V | 30 A | 135 W | 2.2V @ 15V, 30A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | F2 |
|
|
FPF2C110BI07AS2PIM F2 PV 650V 40A |
770 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FPF2G120BF07ASINSULATED GATE BIPOLAR TRANSISTO |
980 | - |
|
Datasheet | - | Module | Bulk | Active | Field Stop | 3 Independent | 650 V | 40 A | 156 W | 2.2V @ 15V, 40A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | F2 |
|
|
FMS6G10US60IGBT, 10A, 600V, N-CHANNEL |
23 | - |
|
Datasheet | - | 25PM-AA | Box | Obsolete | - | Three Phase Inverter | 600 V | 10 A | 66 W | 2.7V @ 15V, 10A | 250 µA | 710 pF @ 30 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
FMS7G20US60SIGBT, 20A, 600V, N-CHANNEL |
28 | - |
|
Datasheet | - | 25PM-AA | Box | Obsolete | - | Three Phase Inverter with Brake | 600 V | 20 A | 89 W | 2.7V @ 15V, 20A | 250 µA | 1.277 nF @ 30 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
|
|
FMS7G15US60IGBT, 15A, 600V, N-CHANNEL |
26 | - |
|
Datasheet | - | 25PM-AA | Box | Obsolete | - | Three Phase Inverter with Brake | 600 V | 15 A | 73 W | 2.7V @ 15V, 15A | 250 µA | 935 pF @ 30 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 25PM-AA |
IGBT Modules FAQ
How can I narrow the current IGBT Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete IGBT Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
