Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG529AK/883BIC SWITCH SP4T X 2 400OHM 18CDIP |
1,368 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
DG202AK/883BIC SW SPST-NOX4 175OHM 16CDIP |
2,219 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
DG302AAK/883BIC SWITCH DPST-NOX2 50OHM 14CDIP |
1,992 | - |
|
Datasheet | - | Tube | Active | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
|
DG309AK/883BIC SW SPST-NCX4 100OHM 16CDIP |
2,302 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | - | 5V ~ 30V | ±5V ~ 20V | 250ns, 150ns | - | -10pC | 11pF, 8pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|

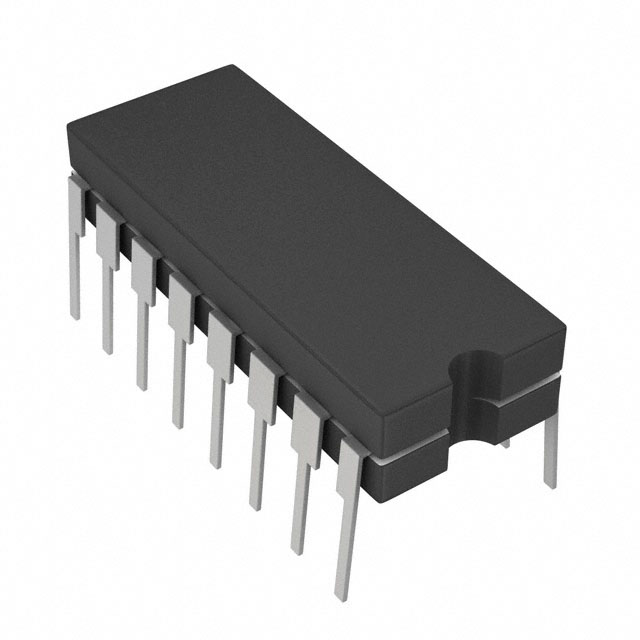

DG408AK/883BIC MUX 8:1 100OHM 16CERDIP |
4,536 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
DG419AK/883BIC SWITCH SPDT X 1 30OHM 8CERDIP |
2,773 | - |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 1 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
DG442AK/883BIC SWITCH SPST-NOX4 85OHM 16CDIP |
3,256 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
DG528AK/883BIC MUX 8:1 400OHM 18CDIP |
2,965 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
HI1-0201HS/883BIC SWITCH SPST-NCX4 50OHM 16CDIP |
4,055 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | 12V ~ 20V | ±5V ~ 20V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
IH5049MJE/883BIC SWITCH SPST-NOX2 60OHM 16CDIP |
2,380 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 8Ohm | - | ±4.5V ~ 20V | 400ns, 200ns (Typ) | - | 10pC | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
