Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSA9688CUCXIC MULTIMEDIA SWITCH |
2,614 | - |
|
Datasheet | * | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLAS44599MNGIC SWITCH DPDT X 2 25OHM 16QFN |
2,970 | - |
|
Datasheet | - | Tube | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 10µA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
NLAS44599MNR2GIC SWITCH DPDT X 2 25OHM 16QFN |
4,365 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 10µA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|

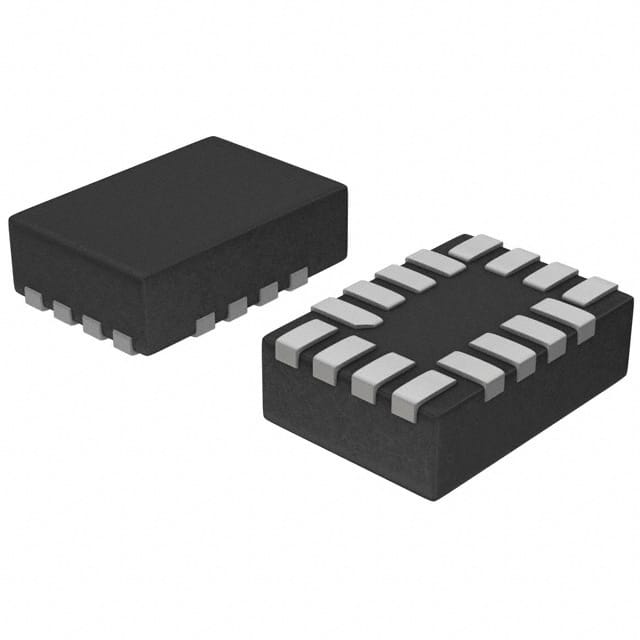

NLAST9431MTR2GIC SWITCH DPDT X 1 25OHM 16WQFN |
3,914 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 1 | 25Ohm | 2Ohm | 2V ~ 5.5V | - | 14ns, 8ns | 200MHz | 3pC | 10pF, 10pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (1.8x2.6) |
|
|
NLAST44599MNGIC SWITCH DPDT X 2 25OHM 16QFN |
1,475 | - |
|
Datasheet | - | Tube | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
NLAS9431MTR2GIC SWITCH DPDT X 2 25OHM 16WQFN |
2,636 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 10µA | -98dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (1.8x2.6) |
|
MC74HC4052ADTGIC SWITCH SP4TX2 100OHM 16TSSOP |
4,402 | - |
|
Datasheet | - | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 95MHz | - | 80pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
FSA2257MTCXIC SWITCH SPDTX2 1.5OHM 14TSSOP |
2,734 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 1.5Ohm (Typ) | 700mOhm | 1.65V ~ 5.5V | - | 35ns, 15ns | 200MHz | 10pC | 12pF | 2nA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
NC7WB66K8XIC SWITCH SPST-NO X 2 10OHM US8 |
4,397 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 200mOhm | 1.65V ~ 5.5V | - | 3.2ns, 4.1ns | 300MHz | - | 5pF | 100nA | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | US8 |
|
NLV74HC4066ADR2GIC SWITCH SPST-NOX4 70OHM 14SOIC |
2,213 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
