Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HI3-0546-5ZIC MUX 16:1 1.8KOHM 28DIP |
3,099 | - |
|
Datasheet | - | Tube | Obsolete | - | 16:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-PDIP |
|
HI3-0549-5ZIC SWITCH SP4T X 2 1.8KOHM 16DIP |
1,254 | - |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 12pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-PDIP |
|
ISL84053IVZIC SWITCH SPDTX3 100OHM 16TSSOP |
3,977 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 6Ohm (Max) | 2V ~ 12V | ±2V ~ 6V | 50ns, 40ns | - | 2pC | 3pF, 9pF | 2pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL54233IRUZ-TIC SWITCH SP3T X 2 15OHM 12UTQFN |
1,838 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 2 | 15Ohm | 70mOhm | 2.7V ~ 4.6V | - | - | 1.6GHz | - | 3pF | 15nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UTQFN (2.2x1.4) |
|
ISL76123AHZ-TIC SWITCH SPDT X 1 23OHM 6SOT |
4,125 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 23Ohm | 800mOhm | 2.7V ~ 12V | - | 25ns, 17ns (Typ) | - | 5pC | 8pF, 8pF | 3nA | -105dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-SOT |
|

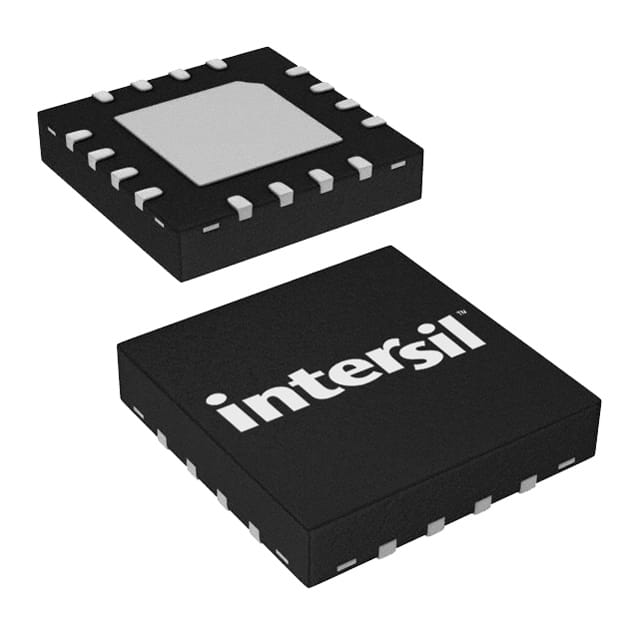

ISL43640IRZ-T7AIC SWITCH SP4T X 1 50OHM 16QFN |
4,441 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 1 | 50Ohm | 500mOhm | 2.7V ~ 12V | - | 30ns, 28ns | - | 1.2pC | 4pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
ISL54233IRUZ-TS2722IC MUX DUAL 3:1 8OHM 12UTQFN |
1,778 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 3:1 | 2 | 8Ohm | 70mOhm | 2.7V ~ 4.6V | - | - | 1.6GHz | - | 3pF | 15nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UTQFN (2.2x1.4) |
|
|
ISL43141WR5435IC SWITCH SPST-NO X 4 65OHM |
2,609 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 65Ohm | 2Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 80ns, 30ns | - | 1pC | 7pF, 7pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | - | - |
|
|
ISL43141WR5472IC SWITCH SPST-NO X 4 65OHM |
4,091 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 4 | 65Ohm | 2Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 80ns, 30ns | - | 1pC | 7pF, 7pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | - | - |
|
|
ISL43681WR5345IC MUX 8:1 60OHM |
3,629 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 60Ohm | 1.3Ohm (Typ) | 2V ~ 12V | ±2V ~ 6V | 50ns, 35ns | - | 0.3pC | 3pF, 21pF | 100pA | -110dB @ 100kHz | -40°C ~ 85°C | - | - | - | - |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
