Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-8771701XAIC MUX 16:1 380OHM 28CDIP |
3,213 | - |
|
Datasheet | - | Bulk | Active | - | 16:1 | 1 | 380Ohm | 19Ohm | 15V | ±15V | 2µs, 500ns | - | - | 2.5pF, 13pF | 1nA | -75dB @ 500kHz | -55°C ~ 125°C | - | - | Through Hole | 28-CDIP |
|
ADG408BCHIPSIC SWITCH SP8T X 1 100OHM DIE |
4,811 | - |
|
Datasheet | - | Bulk | Obsolete | SP8T | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 44V | ±22V | 150ns, 150ns | - | 20pC | 11pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | Die |
|
5962-89710023AIC MUX DUAL 8:1 450OHM 28CLCC |
4,077 | - |
|
Datasheet | ADG527A | Bulk | Active | - | 8:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | - | - | Surface Mount | 28-CLCC |
|
LTC1380IGN#TRPBFIC MUX 8:1 70OHM 16SSOP |
1,828 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 70Ohm | - | 2.7V | ±5V | 1.5µs, 1.2µs | - | 1pC | 3pF, 26pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
|
ADGM1121BCCZDC TO 16GHZ DPDT MEMS SWITCH |
1,837 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ADG802BRTZ-REEL7IC SW SPST-NCX1 300MOHM SOT23-6 |
1,075 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
ADG772BCPZ-REELIC SWITCH SPDTX2 6.7OHM 10LFCSP |
4,085 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 6.7Ohm (Typ) | 40mOhm | 2.7V ~ 3.6V | - | 12.5ns, 9.5ns | 630MHz | 0.5pC | 2.4pF, 6.9pF | 200pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-LFCSP-UQ (1.6x1.3) |
|
|
ADG854BCPZ-REELIC SWITCH SPDTX2 850MOHM 10LFCSP |
3,978 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 850mOhm | 20mOhm | 1.8V ~ 5.5V | - | 23ns, 8.5ns | 100MHz | 30pC | 19.5pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-LFCSP-UQ (1.6x1.3) |
|
ADG858BCPZ-REELIC SWITCH SPDTX2 720MOHM 16LFCSP |
1,554 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-UQ (2.1x2.1) |
|

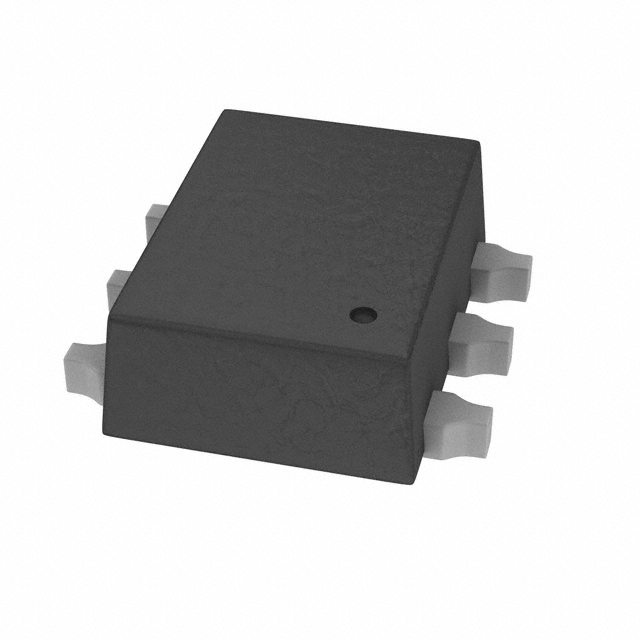

ADG859BRYZ-REEL7IC SWITCH SPDT SOT66 |
2,165 | - |
|
Datasheet | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-66 |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
