Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG602BRTZ-REELIC SW SPST-NCX1 2.5OHM SOT23-6 |
2,833 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 2.5Ohm | - | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 75ns | 180MHz | 250pC | 50pF, 50pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
ADG611YRUZ-REELIC SW SPST-NCX4 115OHM 16TSSOP |
3,915 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG601BRMZ-REELIC SWITCH SPST-NOX1 2.5OHM 8MSOP |
2,076 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 2.5Ohm | - | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 75ns | 180MHz | 250pC | 50pF, 50pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG1213YRUZ-REELIC SW SPST-NO/NC 190OHM 16TSSOP |
1,636 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 190Ohm | 2.5Ohm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 130ns, 115ns | 1GHz | -0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1212YRUZ-REELIC SW SPST-NOX4 190OHM 16TSSOP |
4,954 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 190Ohm | 2.5Ohm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 130ns, 115ns | 1GHz | -0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG201HSKPZ-REELIC SWITCH SPST-NCX4 50OHM 20PLCC |
2,862 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | 1.5Ohm | 10.8V ~ 16.5V | ±13.5V ~ 16.5V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 1nA | -86dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
|
ADG409BRUZ-REELIC SWITCH SP4TX2 100OHM 16TSSOP |
2,447 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 12V | ±15V | - | - | 20pC | 11pF, 20pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

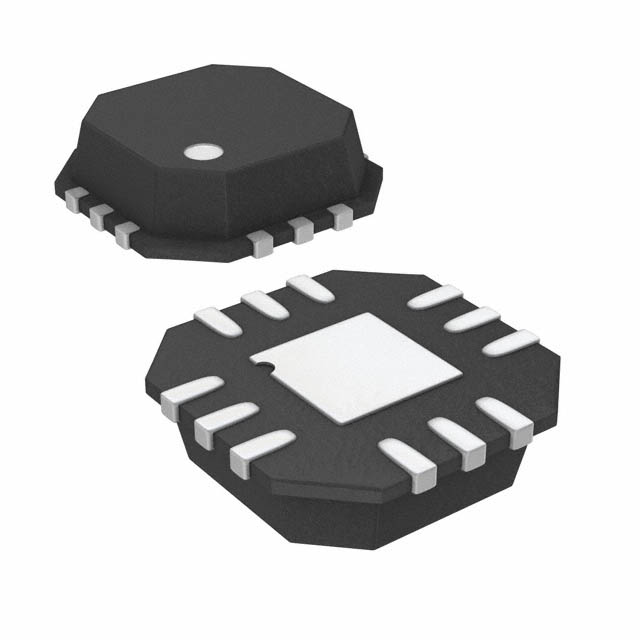

ADG836YCPZ-REELIC SWITCH SPDTX2 650MOHM 12LFCSP |
2,652 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 200pA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-LFCSP-VQ (3x3) |
|
|
ADG613YRUZ-REELIC SW SPST-NO/NC 115OHM 16TSSOP |
4,919 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG841YKSZ-REELIC SW SPST-NOX1 370MOHM SC70-6 |
3,638 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 370mOhm | - | 1.65V ~ 3.6V | - | 14ns, 7.8ns | 21MHz | 200pC | 160pF, 160pF | 200pA (Typ) | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
