Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG711BRZIC SWITCH SPST-NCX4 4OHM 16SOIC |
366 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG711BRUZIC SWITCH SPST-NOX4 4OHM 16TSSOP |
248 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG709CRUZIC SWITCH SP4TX2 4.5OHM 16TSSOP |
16,991 | - |
|
Datasheet | - | Tube | Active | SP4T | 4:1 | 2 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG836YCPZ-REEL7IC SWITCH SPDTX2 650MOHM 12LFCSP |
2,813 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 200pA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-LFCSP-VQ (3x3) |
|
|
ADG712BRZIC SWITCH SPST-NOX4 4OHM 16SOIC |
662 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG738BRUZIC MUX 8:1 4.5OHM 16TSSOP |
21,203 | - |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 20ns, 10ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

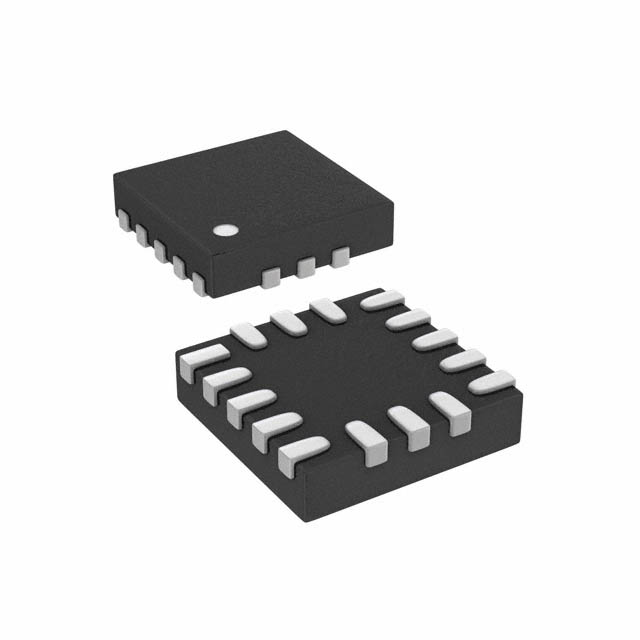

ADG858BCPZ-REEL7IC SWITCH SPDTX2 720MOHM 16LFCSP |
3,296 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-UQ (2.1x2.1) |
|
ADG758BCPZIC MUX 8:1 4.5OHM 20LFCSP |
749 | - |
|
Datasheet | - | Tray | Active | - | 8:1 | 1 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ADG1222BRMZ-REEL7IC SW SPST-NCX2 200OHM 10MSOP |
7,254 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1223BRMZ-REEL7IC SW SPST-NO/NCX2 200OHM 10MSOP |
4,850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
