Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUX36S08IRUMRIC MUX 8:1 170OHM 16WQFN |
1,641 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-WQFN (4x4) |
|
MUX507IPWRIC MUX DUAL 8:1 200OHM 28TSSOP |
8,576 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 2 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 6.4pF | 1nA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-TSSOP |
|
MUX506IDWRIC MUX 16:1 200OHM 28SOIC |
860 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.67pC | 3pF, 12.2pF | 1nA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 28-SOIC |
|

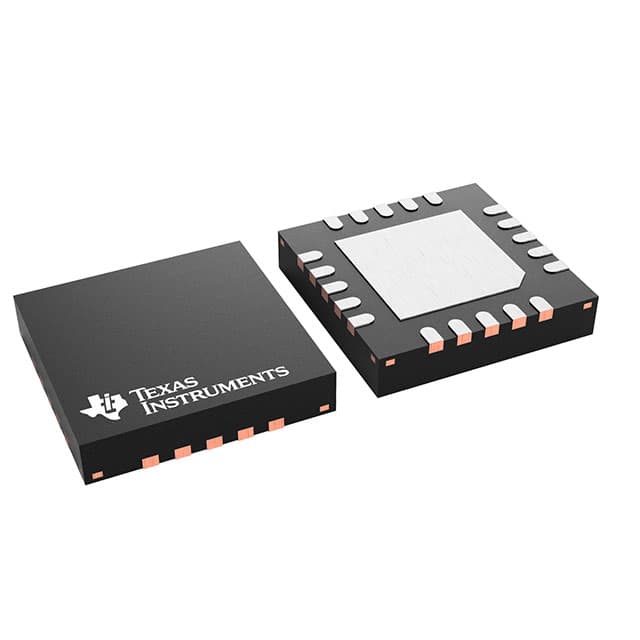

TMUX6234RRQRIC SW SPST-NO/NCX4 6.2OHM 20WQFN |
4,875 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 95ns, 85ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
|
|
TMUX8211PWRIC SWITCH SPST-NCX4 7OHM 16TSSOP |
2,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 7Ohm | 200mOhm (Typ) | 10V ~ 100V | - | 4µs, 100ns (Typ) | 420MHz | -1300pC | 12pF, 12pF | 10pA (Typ) | -110dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX6234PWRIC SW SPDT-NO/NC 6.2OHM 20TSSOP |
1,725 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 6.2Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 150ns | 95MHz | 3pC | 17pF, 28pF | 400pA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
TMUX7219MDGKRIC SWITCH SPDT X 1 2.8OHM 8VSSOP |
1,728 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.8Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 168ns, 180ns | 40MHz | -16pC | 34pF, 48pF | 5nA | -106dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
MUX36D04IPWIC MUX DUAL 4:1 170OHM 16TSSOP |
134 | - |
|
Datasheet | - | Tube | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 400pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX8109PWRIC SWITCH SP4T X 2 48OHM 16TSSOP |
3,452 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 48Ohm | 650mOhm | 10V ~ 100V | ±10V ~ 50V | 3µs, 650ns (Typ) | 380MHz | -150pC | 3pF, 10pF | 20pA (Typ) | -110dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX7436FPWRIC SW SPDT-NO/NCX2 11OHM 16TSSOP |
255 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 11Ohm | 60mOhm (Typ) | 8V ~ 44V | - | 520ns, 210ns | 215MHz | -300pC | 14pF, 28pF | 700pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
