Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4051BEIC MUX 8:1 240OHM 16DIP |
7,334 | - |
|
Datasheet | - | Bulk | Active | - | 8:1 | 1 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 20MHz | - | 0.2pF, 30pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
TS5A3359DCURIC SWITCH SP3TX1 900MOHM 8VSSOP |
5,453 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 900mOhm | 100mOhm | 1.65V ~ 5.5V | - | 21ns, 10.5ns | 75MHz | 20pC | 18pF, 54pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|

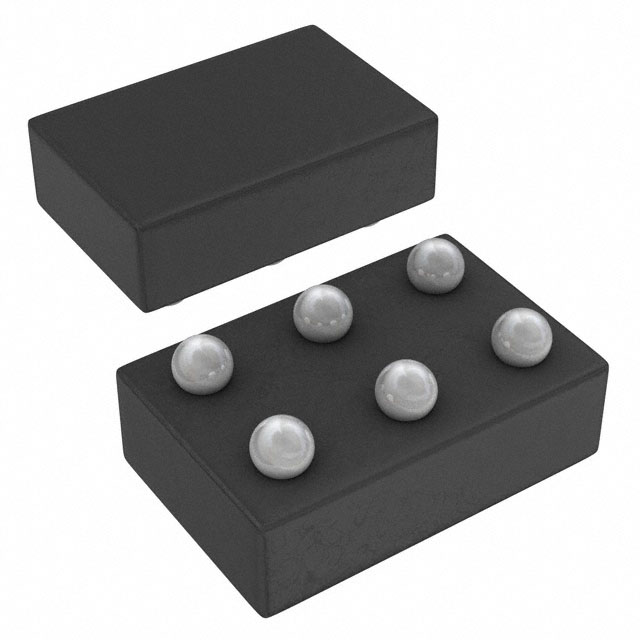

TS5A12301EYFPRIC SWITCH SPDTX1 750MOHM 6DSBGA |
26,161 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 750mOhm | 50mOhm | 2.25V ~ 5.5V | - | 225ns, 215ns | 55MHz | 97pC | 28pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
|
TS5A3357DCURIC SWITCH SP3T X 1 15OHM 8VSSOP |
8,408 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 100nA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS5A23159RSERIC SWITCH SPDTX2 900MOHM 10UQFN |
10,477 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 13ns, 8ns | 100MHz | -7pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|

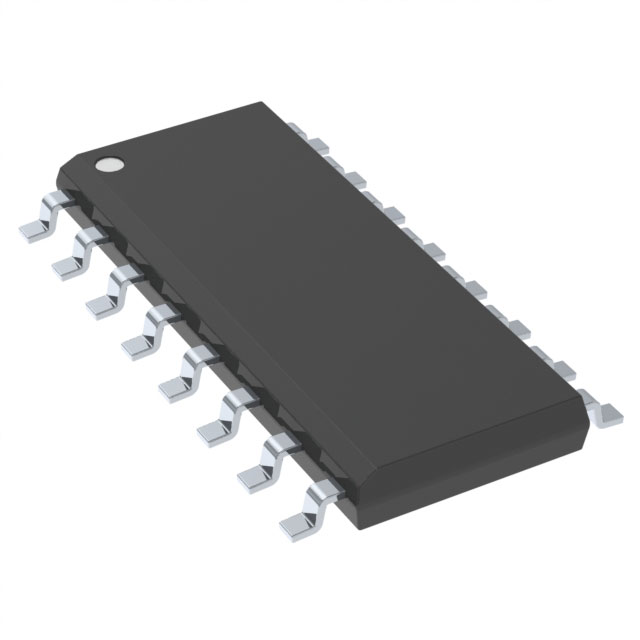

SN3257QDYYRQ1IC SWITCH SPDT X 1 5OHM 16SOT23 |
22,303 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm | 70mOhm | 1.5V ~ 5.5V | - | 35µs, 95ns | 1.2GHz | 3.5pC | 4pF, 4pF | 900nA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
|
TMUX136RSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
45,822 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TMUX136MRSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
12,701 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TS3A24157RSERIC SWITCH SPDTX2 600MOHM 10UQFN |
8,569 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 600mOhm | 50mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 50MHz | 8.75pC | 50pF | 50nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
TS5A21366RSERIC SWITCH SPST-NO X 2 1OHM 8UQFN |
2,334 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 1Ohm | 40mOhm | 1.65V ~ 5.5V | - | 72ns, 318ns | 260MHz | 1.3pC | 19pF, 17pF | 10nA | -98dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
