Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG406BDW-E3IC MUX 16:1 60OHM 28SOIC |
1,587 | - |
|
Datasheet | - | Tube | Active | - | 16:1 | 1 | 60Ohm | 3Ohm | 7.5V ~ 44V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 108pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
DG406BDW-T1-E3IC MUX 16:1 60OHM 28SOIC |
4,084 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 60Ohm | 3Ohm | 7.5V ~ 44V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 108pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
DG417BDY-T1-E3IC SWITCH SPST-NCX1 25OHM 8SOIC |
1,359 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 25Ohm | - | 13V ~ 36V | ±7V ~ 22V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
DG418BDQ-T1-E3IC SWITCH SPST-NOX1 25OHM 8MSOP |
4,969 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 25Ohm | - | 13V ~ 36V | ±7V ~ 22V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2301DL-T1-E3IC SWITCH SPST-NOX1 7OHM SC70-5 |
2,354 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 7Ohm | - | 4V ~ 5.5V | - | 3.9ns, 4ns | - | - | 5pF | 10µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2302DL-T1-E3IC SWITCH SPST-NOX1 7OHM SC70-5 |
4,666 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 7Ohm | - | 4V ~ 5.5V | - | 5ns, 3.9ns | - | - | 5pF | 10µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
DG4599DL-T1-E3-HFIC SWITCH SPDT X 1 60OHM SC70-6 |
3,020 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 60Ohm | - | 2.25V ~ 5.5V | - | 30ns, 25ns | - | 5pC | 7pF, 20pF | 1nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
DG2012DL-T1-GE3IC SWITCH SPDT X 1 1.8OHM SC70-6 |
3,027 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.8Ohm | 250mOhm (Max) | 1.8V ~ 5.5V | - | 38ns, 32ns | - | 20pC | 20pF | 500pA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
DG2599DN-T1-GE4IC SW DPDTX2 1.1OHM 16MINIQFN |
3,543 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 1.1Ohm | - | 1.65V ~ 5V | - | 90ns, 70ns | 186MHz | 10pC | 9pF | 10nA | -110dB @ 1MHz | - | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|

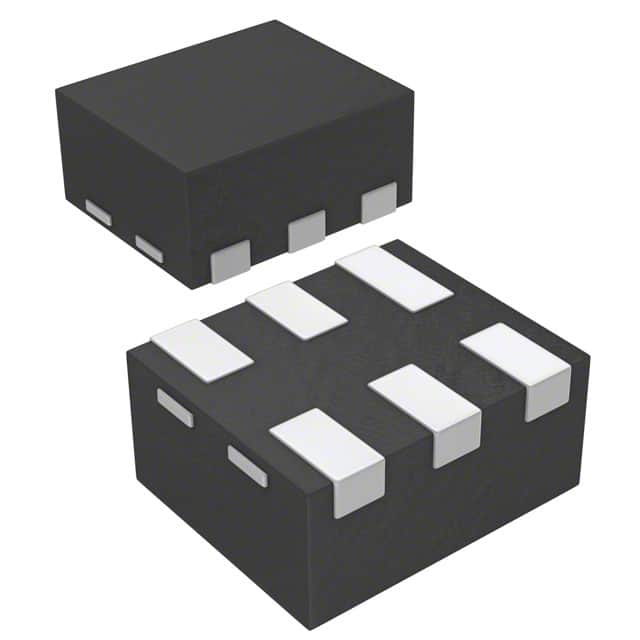

DG2512DN-T1-E4IC SW SPST-NCX1 1.3OHM 6MINIQFN |
1,992 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 1.3Ohm | 150mOhm (Max) | 1.8V ~ 5.5V | - | 35ns, 31ns | - | 14pC | 19pF | 2nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-miniQFN (1x1.2) |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
