Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG307AAKIC SWITCH SPDTX2 50OHM 14CERDIP |
1,177 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG307AAK-E3IC SWITCH SPDTX2 50OHM 14CERDIP |
4,517 | - |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|

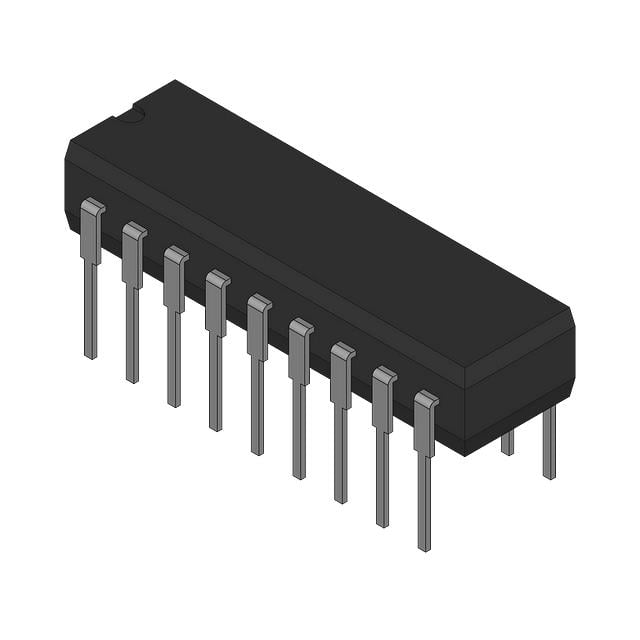

DG528AKIC MUX 8:1 400OHM 18CERDIP |
2,055 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | - | ±15V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CERDIP |
|
DG528BKIC MUX 8:1 450OHM 18CERDIP |
3,724 | - |
|
Datasheet | - | Tube | Obsolete | - | 8:1 | 1 | 450Ohm | 27Ohm | - | ±15V | - | - | 4pC | 5pF, 25pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-CERDIP |
|
|
DG306AAK/883IC SW DPST-NOX2 50OHM 14CERDIP |
3,456 | - |
|
Datasheet | - | Tube | Obsolete | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±15V | 250ns, 150ns | - | 30pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG271AKIC SW SPST-NCX4 50OHM 16CERDIP |
1,109 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | - | - | ±15V | 65ns, 65ns | - | -5pC | 8pF, 8pF | 1nA | -100dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
DG301AAAIC SWITCH SPDTX1 50OHM TO100-10 |
2,177 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
DG301AAKIC SWITCH SPDTX1 50OHM 14CERDIP |
2,557 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
DG301ABKIC SWITCH SPDTX1 50OHM 14CERDIP |
1,257 | - |
|
Datasheet | - | Bulk | Obsolete | SPDT | 2:1 | 1 | 50Ohm | - | - | ±15V | 300ns, 250ns | - | 8pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
DG201AAKIC SW SPST-NCX4 175OHM 16CERDIP |
1,612 | - |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
