Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI3A3899ZTAEXIC SWITCH DPDT X 2 2.4OHM 16UQFN |
2,672 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 2.4Ohm | 200mOhm | 1.65V ~ 4.3V | - | 8ns, 12ns | 330MHz | 13pC | 7pF | 1µA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UQFN (1.8x2.6) |
|
|
PI3USB3031XUAEXUSB2 SWITCH X2-QFN1616-12 T&R 3. |
2,177 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T - Open/Closed | 3:1 | 2 | 7Ohm | 100mOhm | 1.8V ~ 5.5V | - | 100µs, 100µs | 6.5GHz | - | 1.3pF, 1.3pF | 2µA | -65dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-STQFN (1.6x1.6) |
|
|
PSMUX136ZUAEXIC SW SPDT-NO/NCX2 9OHM 10UQFN |
1,544 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 9Ohm | 100mOhm | 1.8V ~ 5.5V | - | 100µs, 50ns (Typ) | 5.5GHz | - | 2.2pF | 2µA | -37dB @ 240MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
PI3A223ZMEXIC SWITCH SPDTX2 750MOHM 10UQFN |
5,340 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 50mOhm (Typ) | 1.65V ~ 4.2V | - | 13ns, 38ns (Typ) | 84MHz | 50pC | 20pF, 20pF | 1µA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
PI5A3167CTAEXIC SW SPST-NCX1 1.2OHM SOT23-5 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 6ns, 7.5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PI5A3166TAEXIC SW SPST-NOX1 1.2OHM SOT23-5 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 2ns, 5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
PI5A3157BC6EXIC SWITCH SPDTX1 13OHM SOT363-6 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 11Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 4.5ns | 350MHz | 7pC | 2.5pF | 100nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
|
PI5A4157CEXIC SWITCH SPDTX1 1.2OHM SOT363-6 |
1,119 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
PI5A4157TAEXIC SWITCH SPDTX1 1.2OHM SOT23-6 |
1,084 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 18ns, 20ns | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

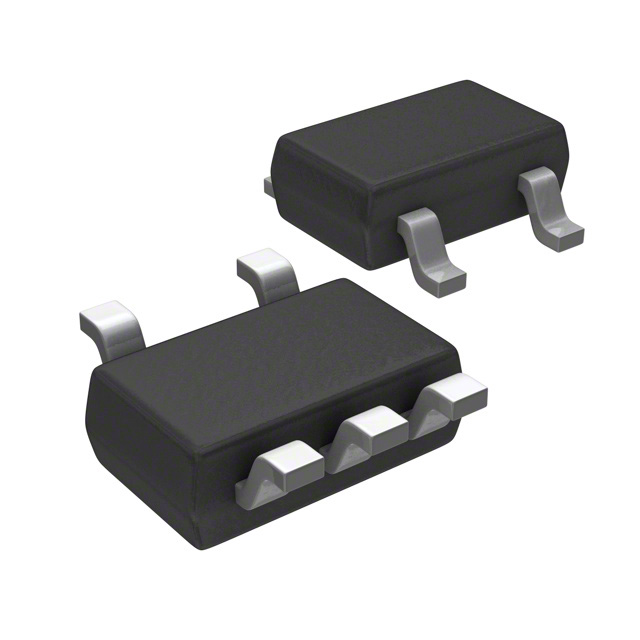

PI5A3167CCEXIC SW SPST-NCX1 1.2OHM SC70-5 |
1,897 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.2Ohm | - | 1.65V ~ 5.5V | - | 6ns, 7.5ns | 200MHz | 35pC | 15pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
