Analog Switches - Special Purpose
Browse available Analog Switches - Special Purpose components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PI5USB31213AXEAEXUSB3 SWITCH,X1-QFN2040-24,T&R,3. |
7,000 | - |
|
Datasheet | - | 24-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | - | - | 2 | - | 2.7V ~ 5.5V | - | - | Bi-Directional, USB 3.0 | -40°C ~ 85°C | - | - | Surface Mount | 24-X1QFN (2x4) |
|

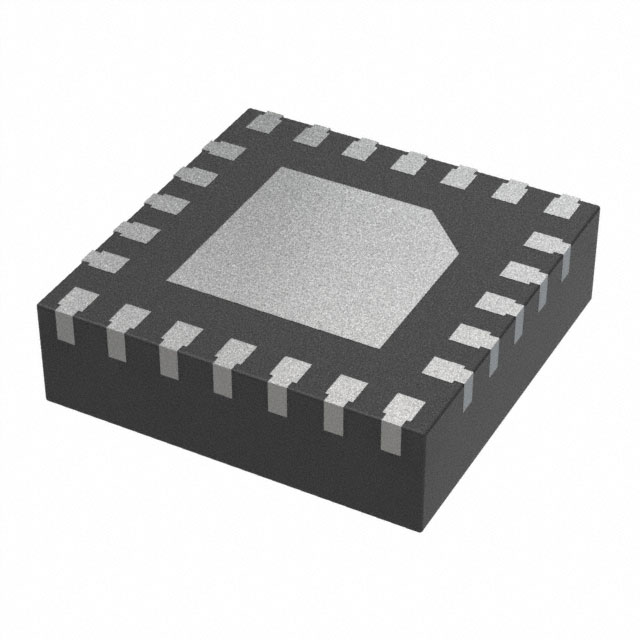

PI2DBS16212AZREXPCIE SWITCH W-QFN2525-24 T&R 3.5 |
29,780 | - |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | - | 2:1 | SPST | 2 | - | 1.8V | - | 14GHz | - | -40°C ~ 85°C | - | - | Surface Mount | 24-TQFN (2.5x2.5) |
|
|
PI3DBS16222XEAEXPCIE SWITCH X1-QFN2040-24 |
22,543 | - |
|
Datasheet | - | 24-XFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 1:1 | 8PST | 1 | - | 2.97V ~ 3.63V | - | - | USB 3.1 | -40°C ~ 85°C | - | - | Surface Mount | 24-X1QFN (2x4) |
|
HD3SS215RTQRIC DISPLYPRT 2:1 DIFF SW 56QFN |
3,239 | - |
|
Datasheet | - | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 1 | 14Ohm | 3V ~ 3.6V | - | 7GHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 56-QFN (8x8) |
|
HD3SS214ZXHR8.1 GBPS DISPLAYPORT 1.4 1-TO-2 |
1,835 | - |
|
Datasheet | - | 50-VFBGA | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 2 | 12Ohm | 3V ~ 3.6V | - | 8GHz | Differential Compatibility | 0°C ~ 70°C | - | - | Surface Mount | 50-NFBGA (5x5) |
|
|
HD3SS215IZXHR6-GBPS HDMI 2.0/5.4-GBPS DISPLAY |
6,346 | - |
|
Datasheet | - | 50-VFBGA | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 1 | 14Ohm | 3V ~ 3.6V | - | 7GHz | - | -40°C ~ 85°C | - | - | Surface Mount | 50-NFBGA (5x5) |
|
MAX7368EUE+IC MULTIPLEXER DUAL 4X1 16TSSOP |
6,095 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | I2C | 4:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4529CUT+TIC VIDEO SWITCH SPST SOT23-6 |
1,888 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Video | 1:1 | SPST | 1 | 120Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, Buffered, T-Switch Configuration | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-6 |
|
PI3DBS16222Q2ZLEXPCIE SWITCH W-QFN2545-30 T&R 3.5 |
2,914 | - |
|
Datasheet | - | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB, Telecommunications | 2:2 | DPDT | 4 | - | 2.97V ~ 3.63V | - | - | Bi-Directional, SATA, USB 3.0 | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 30-TQFN (2.5x4.5) |
|
MAX7367EUP+IC MULTIPLEXER DUAL 4X1 20TSSOP |
168 | - |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tube | Active | I2C | 4:1 | - | 1 | 24Ohm | 2.3V ~ 5.5V | - | - | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
PI3PCIE3413AZHEXIC MUX/DEMUX PCIE 42TQFN |
10,502 | - |
|
Datasheet | PCI Express® (PCIe) | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 3:1 | - | 4 | - | 3V ~ 3.6V | - | 6.8GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
MAX4762EBC+TIC SWITCH DUAL SPDT 12UCSP |
4,909 | - |
|
Datasheet | - | 12-WFBGA, CSPBGA | Tape & Reel (TR) | Active | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UCSP |
|
MAX4762EUB+IC SWITCH DUAL SPDT 10UMAX |
197 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
MAX4764EUB+IC SWITCH DUAL SPDT 10UMAX |
3,266 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
MAX4586EUB+IC AUDIO/VIDEO MUXI 4X1 10UMAX |
322 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Audio, Video | 4:1 | - | 1 | 65Ohm | 2.7V ~ 5.5V | - | 300MHz | Break-Before-Make, I2C | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
CPC7512ZIC ANALOG SW ARRAY DUAL 20SOIC |
957 |
1+：$19.04000 10+：$15.15300 40+：$13.77475 120+：$13.00583 280+：$12.55521 520+：$12.28767 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Ultrasound | 3:1 | - | 2 | 29Ohm (Typ) | 4.5V ~ 5.5V | - | - | Fault Protection, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
|

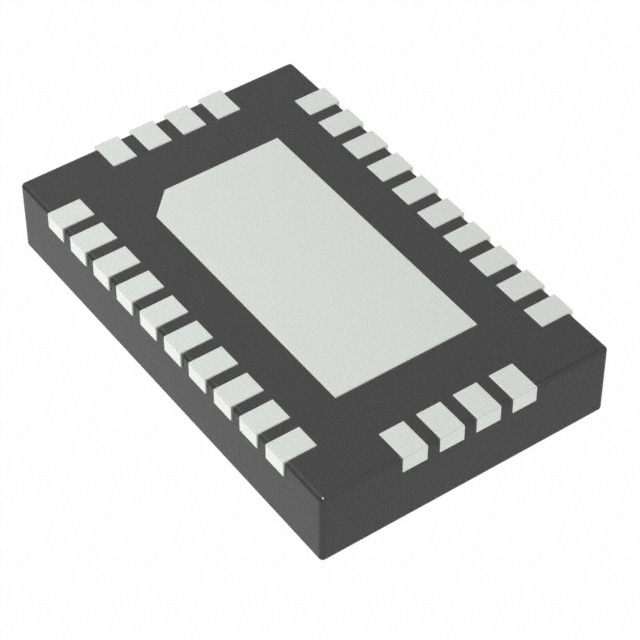

MAX4888CETI+IC SWITCH DUAL DPDT 28TQFN |
812 | - |
|
Datasheet | - | 28-WFQFN Exposed Pad | Tube | Active | PCI Express® | - | DPDT | 2 | 8.4Ohm | 3V ~ 3.6V | - | 8GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TQFN (3.5x5.5) |
|
MAX4890EETJ+IC ETHERNET SWITCH OCTAL 32TQFN |
609 | - |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tube | Active | Networking | 2:1 | SPDT | 4 | 5.5Ohm | 3V ~ 3.6V | - | 650MHz | Differential Compatibility, LAN, 1000 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (5x5) |
|
LT6555CGN#PBFIC VIDEO MULTIPLEXER 2X1 24SSOP |
519 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tube | Active | Video | 2:1 | SPDT | 3 | - | 4.5V ~ 12V | ±2.25V ~ 6V | 650MHz | Buffered, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SSOP |
|
MAX4545EAP+IC VIDEO SWITCH QUAD SPST 20SSOP |
164 | - |
|
Datasheet | - | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Video | 1:1 | SPST | 4 | 20Ohm | 2.7V ~ 12V | ±2.7V ~ 6V | 300MHz | Bi-Directional, T-Switch Configuration | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SSOP |
Analog Switches - Special Purpose FAQ
What Analog Switches - Special Purpose components can I source from EGOO?
You can browse available Analog Switches - Special Purpose product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Analog Switches - Special Purpose parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
