Isolators - Gate Drivers
Compare the current Isolators - Gate Drivers Isolators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "ACNU-4803-000E")
|
ACNU-4803-000EOPTOISO 5KV 1CH GATE DVR 8SO |
2,000 | - |
|
Datasheet | - | 8-SOIC (0.378", 9.60mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 150ns | 90ns | 6ns, 6ns | 125mA, 125mA | - | 1.5V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, UL |
|
ACPL-3130-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
2,699 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
ACPL-P346-060EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
1,592 | - |
|
Datasheet | - | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-P346-560EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
2,000 | - |
|
Datasheet | - | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-312U-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
1,688 | - |
|
Datasheet | R²Coupler™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACPL-312T-500EOPTOISO 3.75KV 1CH GT DVR 8DIP |
1,988 | - |
|
Datasheet | R²Coupler™ | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
ACFJ-3262-000EGATE DRIVE OPTOCOUPLER,IEC+LF |
1,395 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width), 18 Leads | Bulk | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 95ns, 95ns | 20ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 10V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 24-SO | CSA, IEC/EN, UL |
|
|
ACFJ-3262T-000EAUTOMOTIVE OPTOCOUPLER, LF |
1,360 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width), 18 Leads | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 95ns, 95ns | 20ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 10V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | CSA, IEC/EN, UL |
|
ACPL-336J-500EOPTOISO 5KV 1CH GATE DVR 16SO |
1,631 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 220ns, 250ns | 120ns | 80ns, 45ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

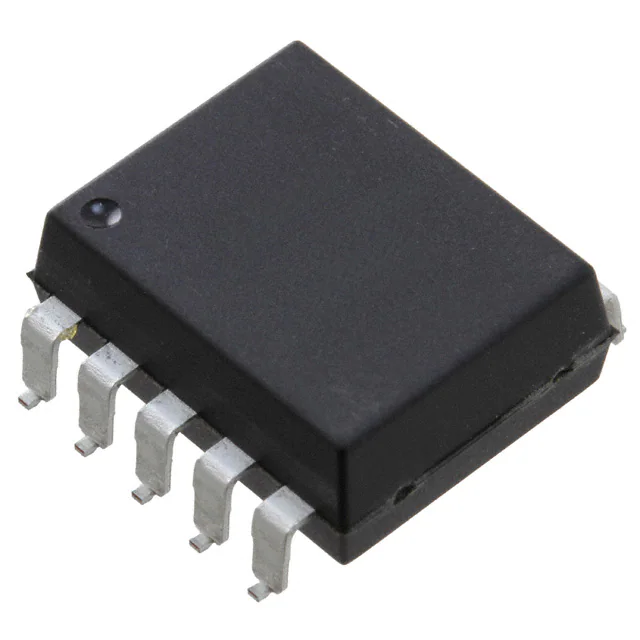

ACNV3130-500EOPTOISO 7.5KV 1CH GT DVR 10DIP |
1,500 | - |
|
Datasheet | - | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
Isolators - Gate Drivers FAQ
How can I narrow the current Isolators - Gate Drivers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Isolators - Gate Drivers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
