Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/07401BCASN54S51 AND-OR-INVERT GATES |
190 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

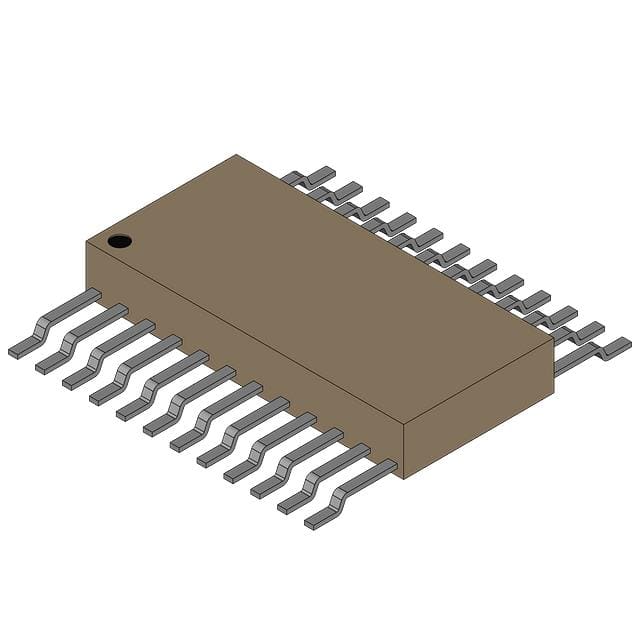

100301W-QMLV100301 - OR/NOR GATE, 100K SERIE |
1,238 | - |
|
Datasheet | - | - | Bulk | Active | NOR/OR Gate | - | 15 Input (5, 5, 5) | - | - | - | 4.2V ~ 5.7V | - | - | - | - | - |
|
100304J-QMLV100304 - AND/NAND GATE, 100K SER |
4,827 | - |
|
Datasheet | - | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100307W-QMLV100307 - XOR/XNOR GATE, 100K SER |
201 | - |
|
Datasheet | - | - | Bulk | Active | XOR/XNOR Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
|
100304W-QMLV100304 - AND/NAND GATE, 100K SER |
3,429 | - |
|
Datasheet | - | - | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V | - | - | - | Through Hole | - |
|
|
100302J-QMLVOR/NOR GATE, 100K SERIES, 5-FUNC |
120 | - |
|
Datasheet | - | 24-DIP (0.400", 10.16mm) | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | 4.2V ~ 5.7V | - | - | - | Through Hole | - |
|
|
100302W-QMLV100302 - OR/NOR GATE, 100K SERIE |
3,261 | - |
|
Datasheet | - | - | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | -4.2V ~ -5.7V | - | - | - | Surface Mount | - |
|
ASNT5160-KMC50GB BROADBAND AND OR LOGIC GATE |
1,992 | - |
|
Datasheet | - | 24-CFlatPack | Bulk | Active | AND/OR Gate | 1 | 4 Input (2, 2) | No | Differential | - | 3.1V ~ 3.5V | -40°C ~ 125°C | - | - | Surface Mount | 24-CQFP (8x8) |
|
HMC745LC3IC GATE XOR/XNOR 13DBPS 16CQFN |
3,629 | - |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Strip | Active | XOR/XNOR Gate | 1 | 4 | No | Differential, Single-Ended | - | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
CD4068BEIC NAND/AND GATE 8-IN 14-DIP |
853 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74LVC1G58GM,115IC CONFIG MULTI-FUNC GATE 6-XSON |
571 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74AUP1G58GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
213 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74AUP1T58GW,125IC TRANSLATOR UNIDIR 6TSSOP |
407 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | 1 | - | - | Single-Ended | - | - | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G98GV,125IC CONFIG MULTI FUNC GATE 6TSOP |
369 | - |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
CD4048BPWIC 8IN GATE EXPND MULTI 16TSSOP |
550 | - |
|
Datasheet | 4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74AUP2G3404GN,125IC BUFFER/INVERTER SGL X2SON6 |
225 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
SY55851AUKGIC GATE UNIV 3GHZ 50 OHM 10MSOP |
4,053 | - |
|
Datasheet | SY55 | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
MC10EP08DTGIC GATE XOR/XNOR ECL 2INP 8TSSOP |
1,039 | - |
|
Datasheet | 10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
MC10EP05DGIC GATE AND/NAND ECL 2INP 8SOIC |
2,214 | - |
|
Datasheet | 10EP | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
74AUP1G57GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
699 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
Gates and Inverters - Multi-Function, Configurable FAQ
What Gates and Inverters - Multi-Function, Configurable components can I source from EGOO?
You can browse available Gates and Inverters - Multi-Function, Configurable product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Gates and Inverters - Multi-Function, Configurable parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
