Gates and Inverters
Browse available Gates and Inverters components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G02DRLRIC GATE NOR 1CH 2-INP SOT5 |
11,631 | - |
|
Datasheet | 74LVC | SOT-553 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-5 |
|
SN74AUC1G04DCKRIC INVERTER 1CH 1-INP SC70-5 |
11,133 | - |
|
Datasheet | 74AUC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 2.7V | 10 µA | 9mA, 9mA | 0V ~ 0.7V | 1.7V | 1.9ns @ 2.5V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
74LVC1G332GW,125IC GATE OR 1CH 3-INP 6TSSOP |
10,764 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
SN74AUP1G32DCKRIC GATE OR 1CH 2-INP SC70-5 |
10,633 | - |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
SN74HCT04DRIC INVERTER 6CH 1-INP 14SOIC |
9,248 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LVC08ADRIC GATE AND 4CH 2-INP 14SOIC |
8,220 | - |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.9ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
74HCT1G32GV,125IC GATE OR 1CH 2-INP SC74A |
8,154 | - |
|
Datasheet | 74HCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 10ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-74A |
|
|
SN74HCS00DRIC GATE NAND 4CH 2-INP 14SOIC |
7,313 | - |
|
Datasheet | 74HCS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 12ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
.jpg "74AUP1G04GW-Q100H")
|
74AUP1G04GW-Q100HIC INVERTER 1CH 1-INP 5TSSOP |
6,903 | - |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
74LVC08APW,118IC GATE AND 4CH 2-INP 14TSSOP |
6,864 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 4.1ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HC86D,653IC GATE XOR 4CH 2-INP 14SO |
6,395 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74AHCT14PWRIC INVERTER 6CH 1-INP 14TSSOP |
6,370 | - |
|
Datasheet | 74AHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|

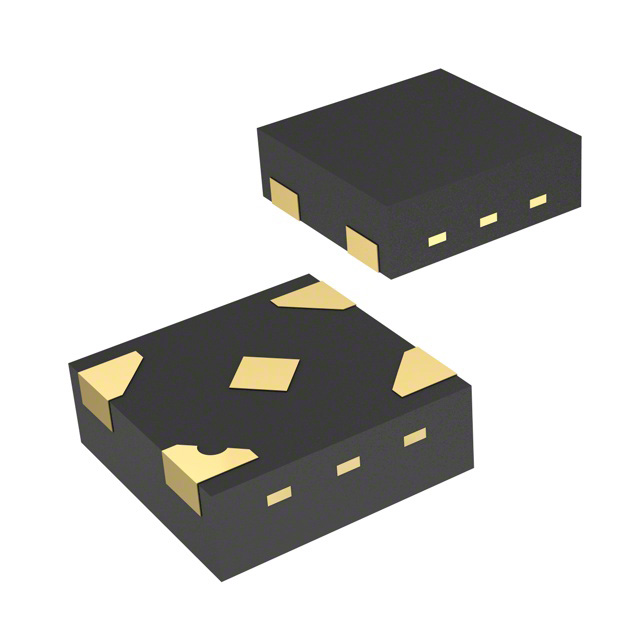

74LVC1G32GX,125IC GATE OR 1CH 2-INP 5X2SON |
5,489 | - |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|
|
74HC00PW,118IC GATE NAND 4CH 2-INP 14TSSOP |
4,363 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 40 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 7ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74HC04D,653IC INVERTER 6CH 1-INP 14SO |
2,165 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 14ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74AHCT14DRIC INVERT SCHMITT 6CH 1IN 14SOIC |
5,149 | - |
|
Datasheet | 74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74LVC2G08GT,115IC GATE AND 2CH 2-INP 8XSON |
73,918 | - |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
SN74AUP1G32DBVRIC GATE OR 1CH 2-INP SOT23-5 |
14,919 | - |
|
Datasheet | 74AUP | SC-74A, SOT-753 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
SN74LVC1G00DRLRIC GATE NAND 1CH 2-INP SOT5 |
5,596 | - |
|
Datasheet | 74LVC | SOT-553 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-5 |
|
|
SN74HCS32PWRIC GATE OR 4CH 2-INP 14TSSOP |
57,255 | - |
|
Datasheet | 74HCS | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 12ns @ 6V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
Gates and Inverters FAQ
What Gates and Inverters components can I source from EGOO?
You can browse available Gates and Inverters product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Gates and Inverters parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
