Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC2G08GT,115IC GATE AND 2CH 2-INP 8XSON |
73,918 | - |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
74LVC1G11GM,115IC GATE AND 1CH 3-INP 6XSON |
16,829 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
74LVC1G08GM,115IC GATE AND 1CH 2-INP 6XSON |
14,889 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
.jpg "74LV1T08GWH")
|
74LV1T08GWHIC GATE AND 1CH 2-INP 5TSSOP |
5,296 | - |
|
Datasheet | 74LV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.6V ~ 5.5V | 1 µA | 8mA, 8mA | 0.1V ~ 0.3V | 1.28V ~ 4.6V | 4.6ns @ 5V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74LVC2G04GV-Q100HIC INVERTER 2CH 2-INP 6TSOP |
2,887 | - |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
74LVC14AD,118IC INVERT SCHMITT 6CH 1-INP 14SO |
1,952 | - |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1V ~ 2V | 6.4ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74LVC1G04GM,115IC INVERTER 1CH 1-INP 6XSON |
1,456 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
74AUP1GU04GW,125IC INVERTER 1CH 1-INP 5TSSOP |
34,785 | - |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 4.3ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74AUP1G08GS,132IC GATE AND 1CH 2-INP 6XSON |
19,740 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|

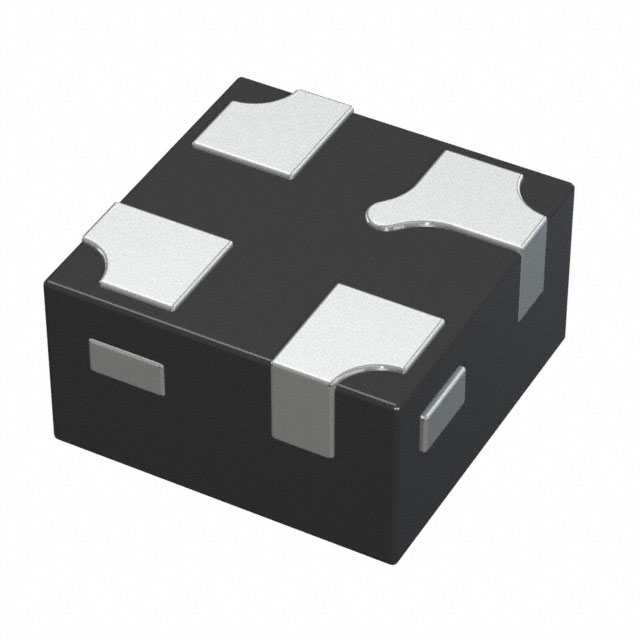

74LVC1G14GX4ZIC INVERT SCHMITT 1CH 1IN 4X2SON |
8,037 | - |
|
Datasheet | 74LVC | 4-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-X2SON (0.6x0.6) |
Gates and Inverters FAQ
How can I narrow the current Gates and Inverters selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Gates and Inverters parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
