Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

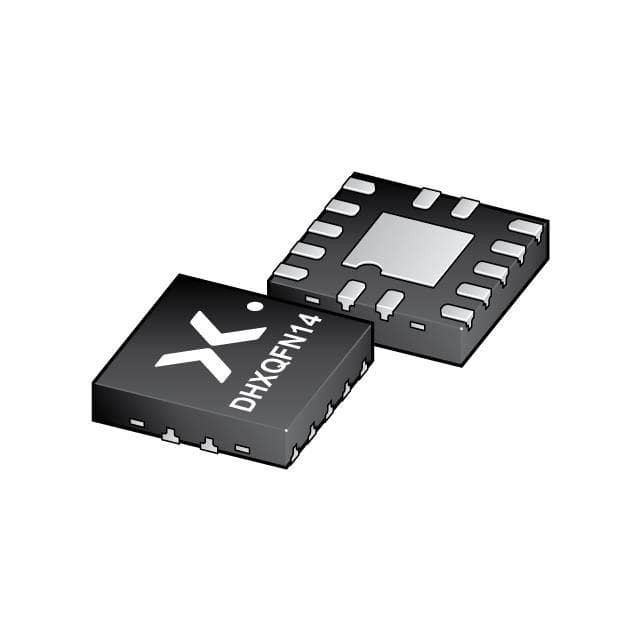

74LVC14ABZZIC INVERTER 6CH 1-INP 14DHXQFN |
799 | - |
|
Datasheet | 74LVC | 14-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHXQFN (2x2) |
|
74AHC32BQ,115IC GATE OR 4CH 2-INP 14DHVQFN |
1,000 | - |
|
Datasheet | 74AHC | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
74HC10PW,112IC GATE NAND 3CH 3-INP 14TSSOP |
276 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT08BQ,115IC GATE AND 4CH 2-INP 14DHVQFN |
245 | - |
|
Datasheet | 74VHCT | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
74AUP2G38GM,125IC GATE NAND 2CH 2-INP 8XQFN |
200 | - |
|
Datasheet | 74AUP | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 12.7ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74LVC86ADB,118IC GATE XOR 4CH 2-INP 14SSOP |
165 | - |
|
Datasheet | 74LVC | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.58V ~ 0.8V | 1.07V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
.jpg "XC7SET02GW,125")
|
XC7SET02GW,125IC GATE NOR 1CH 2-INP 5TSSOP |
120 | - |
|
Datasheet | 7SET | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74AUP2G132GF,115IC GATE NAND 2CH 2-INP 8XSON |
117 | - |
|
Datasheet | 74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
|
74AUP2G32GM,125IC GATE OR 2CH 2-INP 8XQFN |
150 | - |
|
Datasheet | 74AUP | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
|
74LVC3G14GF,115IC INVERT SCHMITT 3CH 3INP 8XSON |
292 | - |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 1.1V ~ 2.5V | 1.7V ~ 3.8V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
