Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HCT00DB,118IC GATE NAND 4CH 2-INP 14SSOP |
1,035 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 40 µA | 4mA, 4mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT00PW,112IC GATE NAND 4CH 2-INP 14TSSOP |
2,369 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 40 µA | 4mA, 4mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT02D,652IC GATE NOR 4CH 2-INP 14SO |
3,742 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT02PW,112IC GATE NOR 4CH 2-INP 14TSSOP |
2,602 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT03D,652IC GATE NAND 4CH 2-INP 14SO |
4,783 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT03DB,118IC GATE NAND 4CH 2-INP 14SSOP |
3,113 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT04DB,118IC INVERTER 6CH 1-INP 14SSOP |
4,214 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT04PW,112IC INVERTER 6CH 1-INP 14TSSOP |
2,734 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

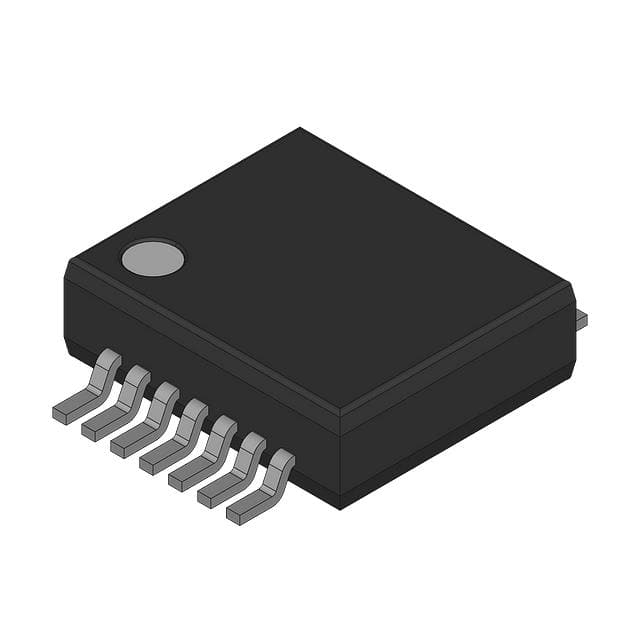

74HCT08DB,118IC GATE AND 4CH 2-INP 14SSOP |
4,027 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT08PW,112IC GATE AND 4CH 2-INP 14TSSOP |
2,935 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
Gates and Inverters FAQ
How can I narrow the current Gates and Inverters selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Gates and Inverters parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
