Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEF4081BT-Q100JIC GATE AND 4CH 2-INP 14SO |
2,185 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 40ns @ 15V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
|
74HCT30D-Q100JIC GATE NAND 1CH 8-INP 14SO |
2,130 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|

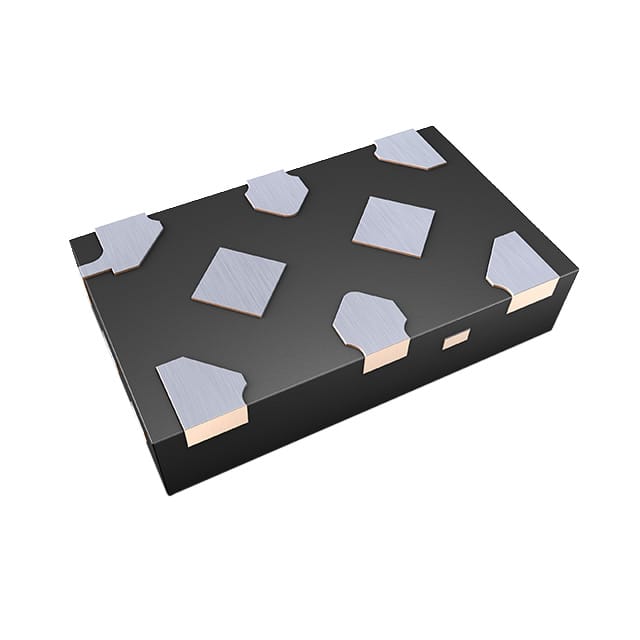

74AUP2G08GXXIC GATE AND 2CH 2-INP 8X2SON |
9,910 | - |
|
Datasheet | 74AUP | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
74LVC2G06GN,132IC INVERTER 2CH 2-INP 6XSON |
5,000 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
74AUP1GU04GS,132IC INVERTER 1CH 1-INP 6XSON |
3,890 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 4.3ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AHCT30D-Q100JIC GATE NAND 1CH 8-INP 14SO |
2,089 | - |
|
Datasheet | 74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 1 | 8 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
74AHCT3G14DP,125IC INVERT SCHMITT 3CH 3IN 8TSSOP |
1,411 | - |
|
Datasheet | 74AHCT | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74AUP2G132GXXIC GATE NAND 2CH 2-INP 8X2SON |
10,000 | - |
|
Datasheet | 74AUP | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
|
74LVC2G86GXXIC GATE XOR 2CH 2-INP 8X2SON |
10,000 | - |
|
Datasheet | 74LVC | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
|
|
74LVC2G00GXXIC GATE NAND 2CH 2-INP 8X2SON |
9,990 | - |
|
Datasheet | 74LVC | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 4.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-X2SON (1.35x0.8) |
