Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AUP1G14GX,125IC INVERT SCHMITT 1CH 1IN 5X2SON |
110,554 | - |
|
Datasheet | 74AUP | 4-XFDFN Exposed Pad | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 6.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|
74AHC1G06GV,125IC INVERTER 1CH 1-INP 5TSOP |
3,666 | - |
|
Datasheet | 74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
|
74AHCT1G06GV,125IC INVERTER 1CH 1-INP 5TSOP |
2,086 | - |
|
Datasheet | 74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Open Drain | 4.5V ~ 5.5V | 1 µA | -, 8mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
74LVC1G14GX,125IC INVERT SCHMITT 1CH 1IN 5X2SON |
50,707 | - |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|

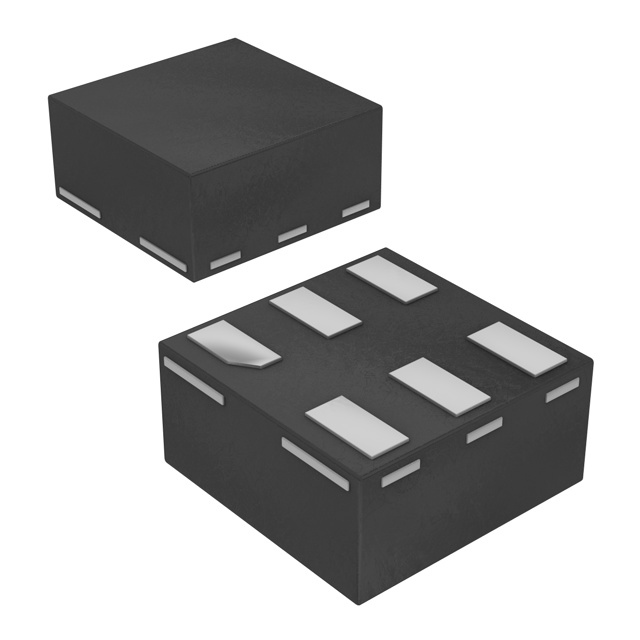

74LVC1G02GS,132IC GATE NOR 1CH 2-INP 6XSON |
325,000 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
74LVC02APW,118IC GATE NOR |
215,500 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | NOR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74AHCT3G14GT,115IC INVERT SCHMITT 3CH 3INP 8XSON |
106,193 | - |
|
Datasheet | 74AHCT | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.95x1) |
|
74LVC3G04GM,125IC INVERTER 3CH 3-INP 8XQFN |
44,000 | - |
|
Datasheet | 74LVC | 8-XFQFN Exposed Pad | Bulk | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
|
74AUP1G09GS,132IC GATE AND 1CH 2-INP 6XSON |
257,087 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 12.7ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
74AUP1G00GM,115IC GATE NAND 1CH 2-INP 6-XSON |
211,320 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | NAND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.5ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
