Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEF4093BT/AUJIC GATE NAND SCHMIT 4CH 2IN 14SO |
3,603 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
HEF4070BP-Q100UIC GATE XOR 4CH 2-INP 14DIP |
3,832 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 15V | - | 3mA, 3mA | 1.5V ~ 4V | 3.5V ~ 11V | 55ns @ 15V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Through Hole | 14-DIP |
|
|
HEC4069UBT-Q100JIC INVERTER 6CH 1-INP 14SO |
2,302 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 30ns @ 15V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
74LVC14APW/S505118IC INVERTER |
2,732 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | - | - | Schmitt Trigger | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC14APW/C2118IC INVERTER 6CH 6-INP 14TSSOP |
4,694 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

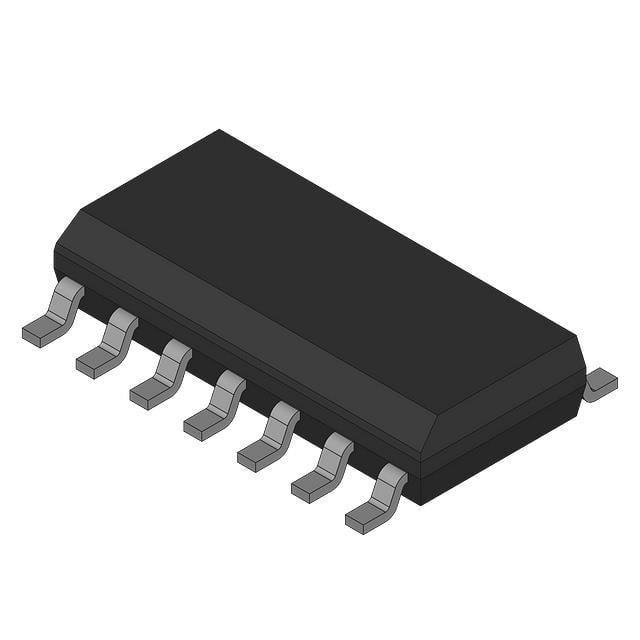

74HC86D/S400118IC GATE XOR 4CH 2-INP 14SO |
1,649 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74LVC1G08GF/S505125IC GATE AND |
1,866 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|
74AUP1G04GX/S500125IC INVERTER 1CH 1-INP 5X2SON |
1,242 | - |
|
Datasheet | 74AUP | 4-XFDFN Exposed Pad | Bulk | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
|

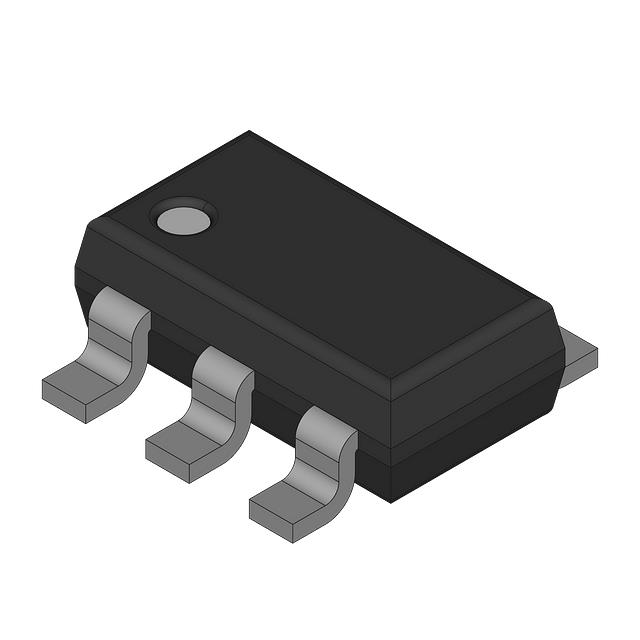

74LVC1G11GV132IC GATE AND |
3,613 | - |
|
Datasheet | 74LVC | SOT-23-6 Thin, TSOT-23-6 | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
74AUP1G06GW-Q100125IC INVERTER 1CH 1-INP 5TSSOP |
1,341 | - |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Active | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
