Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NC7WZU04P6X_F065IC INVERTER 2CH 2-INP SC88 |
4,180 | - |
|
Datasheet | 7WZU | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | - | 1.8V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 5.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
NLX2G04AMX1TCGIC INVERTER 2CH 2-INP 6ULLGA |
4,265 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX2G14AMX1TCGIC INVERT SCHMITT 2CH 2IN 6ULLGA |
3,785 | - |
|
Datasheet | MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 4.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
NLVVHC1G05DFT1GIC INVERTER 1CH 1-INP SC88A |
4,858 | - |
|
Datasheet | 74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
MC74HC30ADTGIC GATE NAND 1CH 8-INP 14TSSOP |
2,190 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 30ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

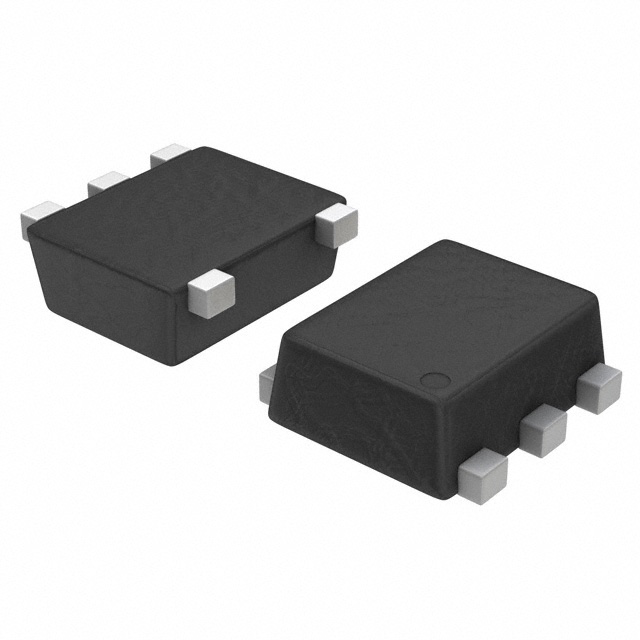

NL17SHT08P5T5GIC GATE AND 1CH 2-INP SOT953 |
1,527 | - |
|
Datasheet | 17SHT | SOT-953 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 3V ~ 5.5V | 1 µA | 8mA, 8mA | 0.53V ~ 0.8V | 1.4V ~ 2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOT-953 |
|
NLV14001UBDGIC GATE NOR 4CH 2-INP 14SOIC |
1,159 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14011UBDGIC GATE NAND 4CH 2-INP 14SOIC |
4,215 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14012BDGIC GATE NAND 2CH 4-INP 14SOIC |
4,599 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14025BDGIC GATE NOR 3CH 3-INP 14SOIC |
1,350 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
