Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

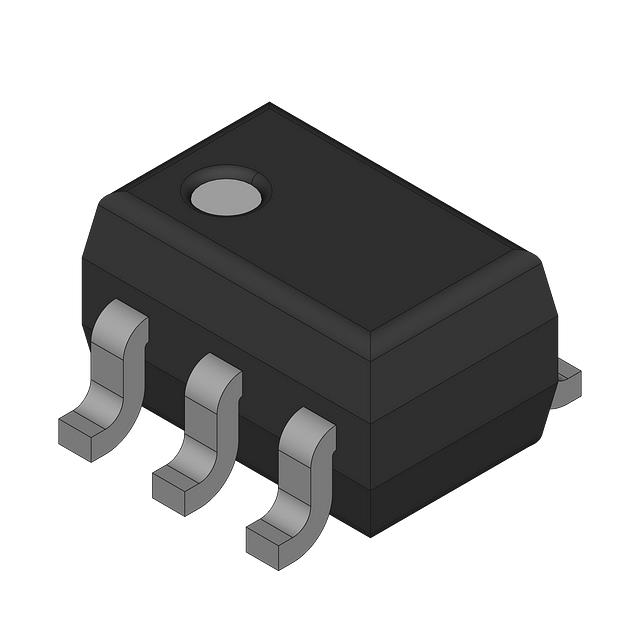

NC7S00P5XIC GATE NAND 1CH 2-INP SC70-5 |
14,295 | - |
|
Datasheet | 7S | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
NC7WZ04P6XIC INVERTER 2CH 2-INP SC88 |
13,972 | - |
|
Datasheet | 7WZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
NC7SZ02P5XIC GATE NOR 1CH 2-INP SC70-5 |
13,487 | - |
|
Datasheet | 7SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
NC7SZ05P5XIC INVERTER 1CH 1-INP SC70-5 |
13,053 | - |
|
Datasheet | 7SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Open Drain | 1.65V ~ 5.5V | 2 µA | -, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
NC7SZ00P5XIC GATE NAND 1CH 2-INP SC70-5 |
12,721 | - |
|
Datasheet | 7SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
NC7SZ27P6XIC GATE NOR 1CH 3-INP SC88 |
12,241 | - |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | NOR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 5.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
NC7S08P5XIC GATE AND 1CH 2-INP SC70-5 |
12,239 | - |
|
Datasheet | 7S | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
MC74HC1G32DFT2GIC GATE OR 1CH 2-INP SC88A |
11,887 | - |
|
Datasheet | 74HC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NL17SZ86DFT2GIC GATE XOR 1CH 2-INP SC88A |
11,651 | - |
|
Datasheet | 17SZ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.2ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC74HC1GU04DFT1GIC INVERTER 1CH 1-INP SC88A |
10,633 | - |
|
Datasheet | 74HC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
