Gates and Inverters
Compare the current Gates and Inverters Logic selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4012BK3IC GATE NAND 2CH 4-INP 14CFP |
106 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 2 | 4 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD40106BK3IC INVERT SCHMITT 6CH 1INP 14CFP |
171 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|

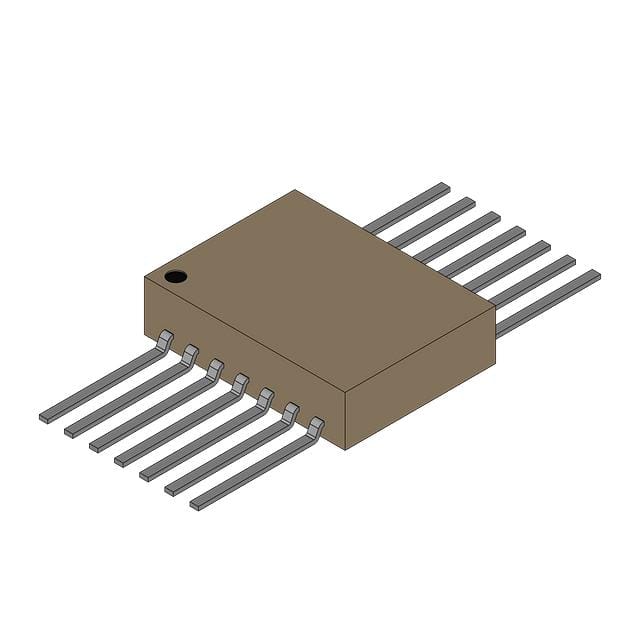

CD4000AKIC GATE NOR 2CH 3-INP 14CFP |
106 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NOR Gate | 2 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 65ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4023AK3IC GATE NAND 3CH 3-INP 14CFP |
128 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 3 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 40ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4081BKIC GATE AND 4CH 2-INP 14CFP |
161 | - |
|
Datasheet | 4000B | 14-CFlatPack | Bulk | Active | AND Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4093BKIC GATE NAND 4CH 2-INP 14CFP |
107 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 18V | 20 µA | 6.8mA, 6.8mA | 2.8V ~ 9.6V | 3.6V ~ 12.7V | 130ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4077BKIC GATE XNOR 4CH 2-INP 14CFP |
207 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | XNOR (Exclusive NOR) | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
CD4049AQBIC HEX BUFFER/CONVERTER |
334 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RCD4001AK3IC GATE NOR QUAD 2-INP |
360 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD4001AK3IC GATE NOR 4CH 2-INP 14CFP |
240 | - |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NOR Gate | 4 | 2 | - | 3V ~ 12V | 2 µA | - | - | - | 65ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
