Magnetic Wire
Browse available Magnetic Wire components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

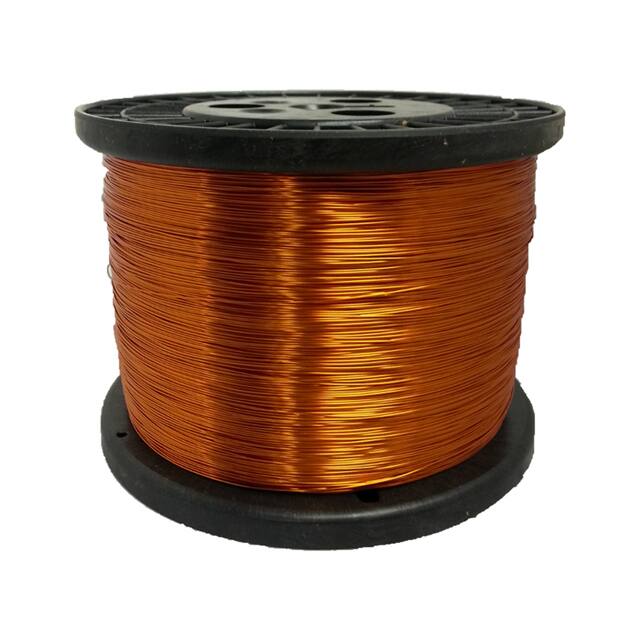

22H20010MAGNET WIRE, 200C, 22 AWG, 10 LB |
1,368 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 5022.0' (1531m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
20H240#20 HVY MAG WIRE, 240C NAT 5LB |
4,978 | - |
|
Datasheet | - | Box | Active | 20 AWG | Copper, Annealed Bare | Polyimide | 0.035" (0.89mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
25/38LITZ2.5#24 LITZ WIRE, 25/38STR, 2.5LB |
3,045 | - |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.026" (0.66mm) | 2004.0' (610.8m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

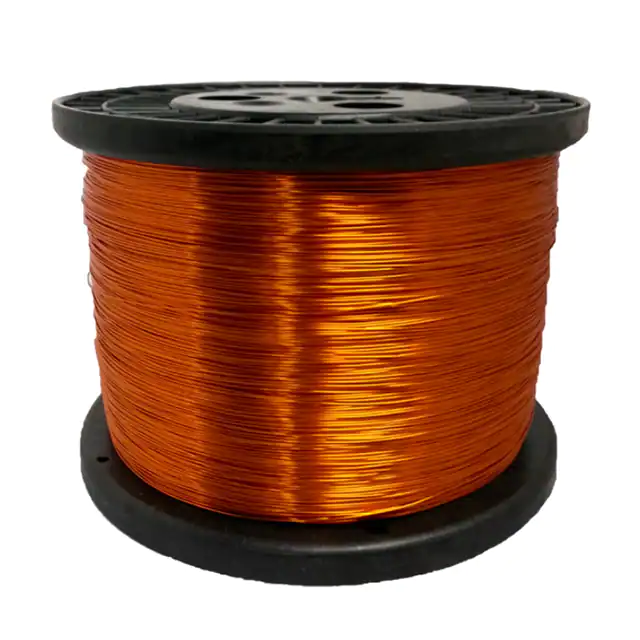

22H240#22 HVY MAG WIRE, 240C NAT 5LB |
3,786 | - |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyimide | 0.028" (0.71mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
24H20010MAGNET WIRE, 200C, 24 AWG, 10LBS |
4,075 | - |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 7900.0' (2408m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
43HFV43HFV 43 AWG HEAVY BUILD MAGNET |
4,382 | - |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Enamel | - | 331011.0' (100892m) | MW 15-C | - |
|
26H20010MAGNET WIRE, 200C, 26 AWG, 10 LB |
1,174 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 12540.0' (3822m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
24H240#24 HVY MAG WIRE, 240C NAT 5LB |
2,998 | - |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyimide | 0.023" (0.58mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
100/38LITZ2.5#18 LITZ WIRE, 5/20/38STR, 2.5LB |
3,838 | - |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.052" (1.32mm) | 501.0' (152.7m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
28H20010MAGNET WIRE, 200C, 28 AWG, 10 LB |
1,045 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 19870.0' (6056m) | MW 35-C | 10.0 lbs (4.5 kg) |
|

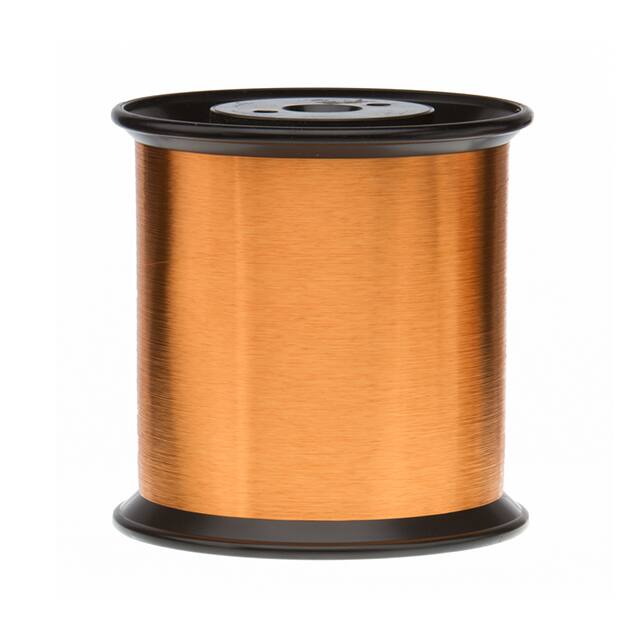

42HFV42HFV 42 AWG HEAVY BUILD MAGNET |
4,713 | - |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Enamel | - | 248000.0' (75590m) | MW 15-C | 5.0 lbs (2.3kg) |
|
26H240#26 HVY MAG WIRE, 240C NAT 5LB |
3,428 | - |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyimide | 0.018" (0.46mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
30H20010MAGNET WIRE, 200C, 30 AWG, 10 LB |
1,087 | - |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | 48730.0' (14853m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
|
40/38LITZ2.5#22 LITZ WIRE, 40/38STR, 2.5LB |
2,001 | - |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.033" (0.84mm) | 1252.0' (381.6m) | MW 80-C | 2.5 lbs (1.1 kg) |
|

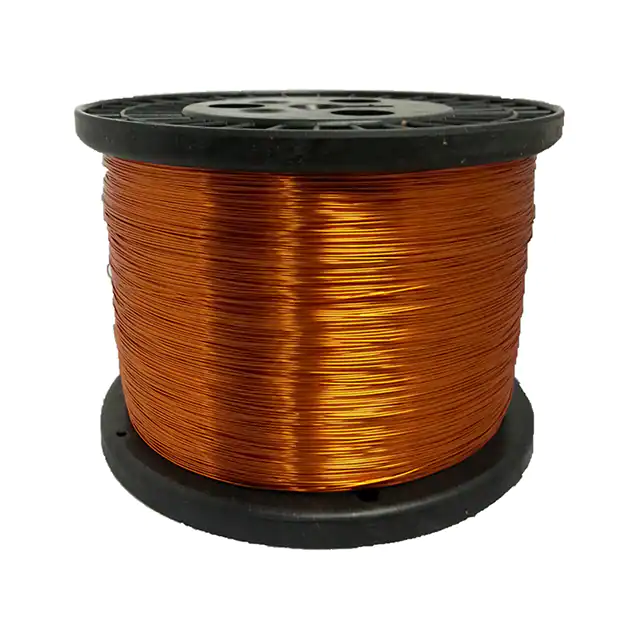

32H20010MAGNET WIRE, 200C, 32 AWG, 10 LB |
4,913 | - |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyester | - | 48730.0' (14853m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
|
16/38LITZ2.5#26 LITZ WIRE, 16/38STR, 2.5LB |
4,257 | - |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.021" (0.53mm) | 3131.0' (954.3m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
28H240#28 HVY MAG WIRE, 240C NAT 5LB |
2,397 | - |
|
Datasheet | - | Box | Active | 28 AWG | Copper, Annealed Bare | Polyimide | 0.015" (0.38mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
|
64/38LITZ2.5#20 LITZ WIRE, 64/38STR, 2.5LB |
2,723 | - |
|
Datasheet | - | Box | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.042" (1.07mm) | 782.0' (238.3m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
42PEMAGNET WIRE, PLAIN ENAMEL COPPER |
2,581 | - |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Enamel | - | 256565.0' (78201m) | MW 1-C | 5.0 lbs (2.3kg) |
|
43PE43PE 43 AWG MAGNET WIRE, PLAIN E |
2,613 | - |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Enamel | - | 369454.0' (112610m) | MW 1-C | - |
Magnetic Wire FAQ
What Magnetic Wire components can I source from EGOO?
You can browse available Magnetic Wire product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Magnetic Wire parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
