Magnetic Wire
Browse available Magnetic Wire components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

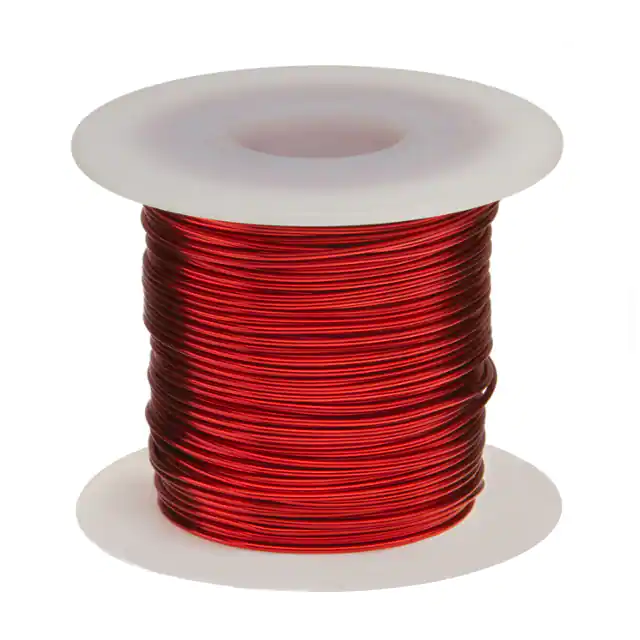

14HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
2,046 | - |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 79.0' (24m) | MW 80-C | 1.0 lbs (453.6 g) |
|
16HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
1,727 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 125.0' (38m) | MW 80-C | 1.0 lbs (453.6 g) |
|
27HNSP#27 HVY MAG WIRE, 155C NAT 1LB |
4,632 | - |
|
Datasheet | - | Box | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.016" (0.41mm) | 1571.0' (479m) | MW 80-C | 1.0 lbs (453.6 g) |
|
36S200P36S200P MAGNET WIRE, ENAMELED CO |
2,552 | - |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 12772.0' (3893m) | MW 35-C | 1.0 lbs (453.6 g) |
|

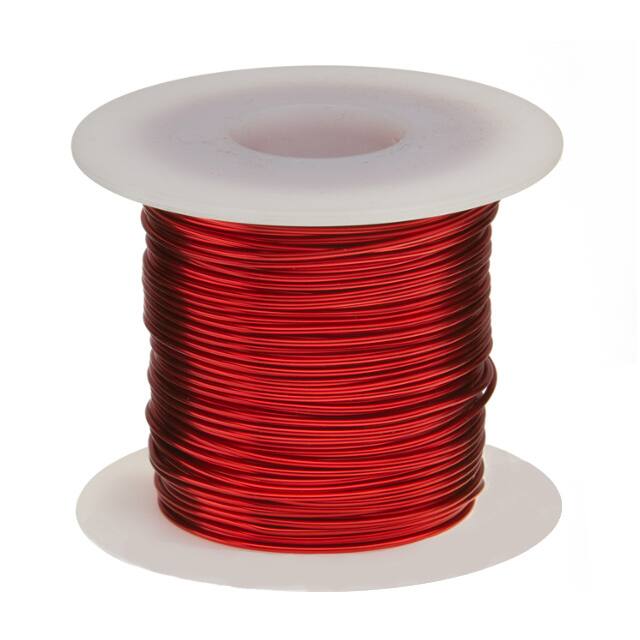

18HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
3,636 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 199.0' (61m) | MW 80-C | 1.0 lbs (453.6 g) |
|
29HNSP#29 HVY MAG WIRE, 155C RED 1LB |
1,851 | - |
|
Datasheet | - | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 2463.0' (751m) | MW 80-C | 1.0 lbs (453.6 g) |
|

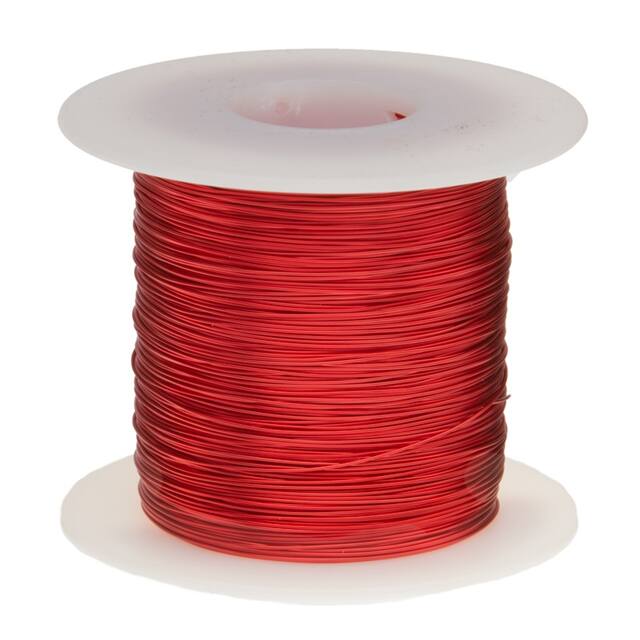

23HNSP#23 HVY MAG WIRE, 155C RED 1LB |
1,977 | - |
|
Datasheet | - | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 625.0' (190m) | MW 80-C | 1.0 lbs (453.6 g) |
|
22H240P.5#22 HVY MAG WIRE, 240C NAT 8OZ |
4,462 | - |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyimide | 0.028" (0.71mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
31HNSP#31 HVY MAG WIRE, 155C RED 1LB |
3,901 | - |
|
Datasheet | - | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 3948.0' (1203m) | MW 80-C | 1.0 lbs (453.6 g) |
|
20HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
3,861 | - |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 314.0' (96m) | MW 80-C | - |
|
25/38LITZ.25#24 LITZ WIRE, 25/38STR, 4OZ |
4,962 | - |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.026" (0.66mm) | 200.0' (61m) | MW 80-C | 0.25 lbs (113.4 g) |
|

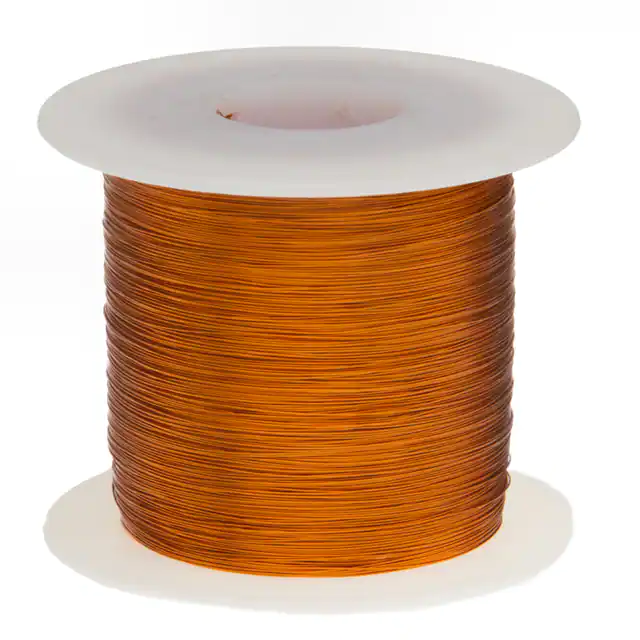

38S200P38S200P MAGNET WIRE, ENAMELED CO |
3,992 | - |
|
Datasheet | - | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyester | - | 19952.0' (6081m) | MW 35-C | 1.0 lbs (453.6 g) |
|
22HNSPMAGNET WIRE, HEAVY BUILD ENAMELE |
1,561 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 501.0' (153m) | MW 80-C | - |
|
2232200MWKIT.1252232200MWKIT.125 MAGNET WIRE KIT |
1,493 | - |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | Assorted | MW 35-C | - |
|
2232200MWKIT.252232200MWKIT.25 MAGNET WIRE KIT, |
3,536 | - |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | Assorted | MW 35-C | - |
|

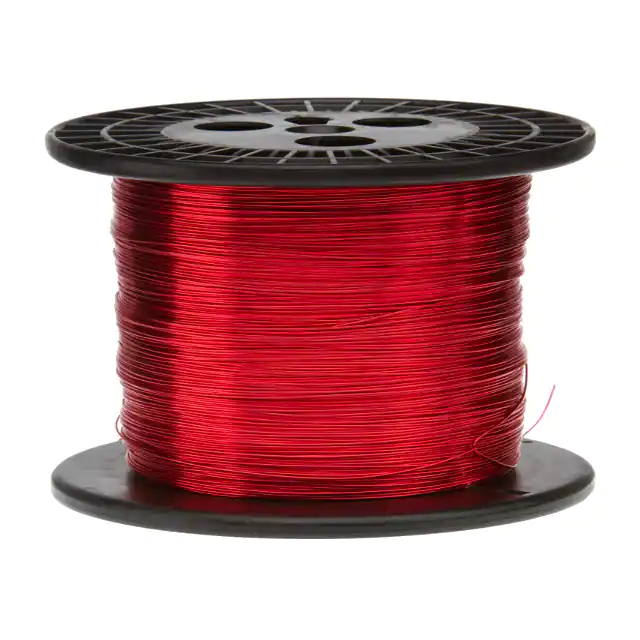

20SNS2.5MAGNET WIRE, ENAMELED COPPER WIR |
4,551 | - |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 798.0' (243m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
18HNS2.5MAGNET WIRE, HEAVY BUILD ENAMELE |
1,519 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 497.0' (151m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
36S2002.5MAGNET WIRE, 200C, 36 AWG,2.5 LB |
1,310 | - |
|
Datasheet | - | Bag | Active | 36 AWG | Copper, Annealed Bare | Polyester | - | 31930.0' (9732m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
16/38LITZ.5#26 LITZ WIRE, 16/38STR, 8OZ |
3,198 | - |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.021" (0.53mm) | 626.0' (190.8m) | MW 80-C | 0.5 lbs (226.8 g) |
|
18SNS18SNS MAGNET WIRE, ENAMELED COPP |
3,180 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1006.0' (306m) | MW 80-C | 5.0 lbs (2.3kg) |
Magnetic Wire FAQ
What Magnetic Wire components can I source from EGOO?
You can browse available Magnetic Wire product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Magnetic Wire parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
