Microphones
Compare the current Microphones Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FG-30077-C36MIC COND ANLG OMNI -53DB 0.101"D |
3,772 | - |
|
Datasheet | FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|

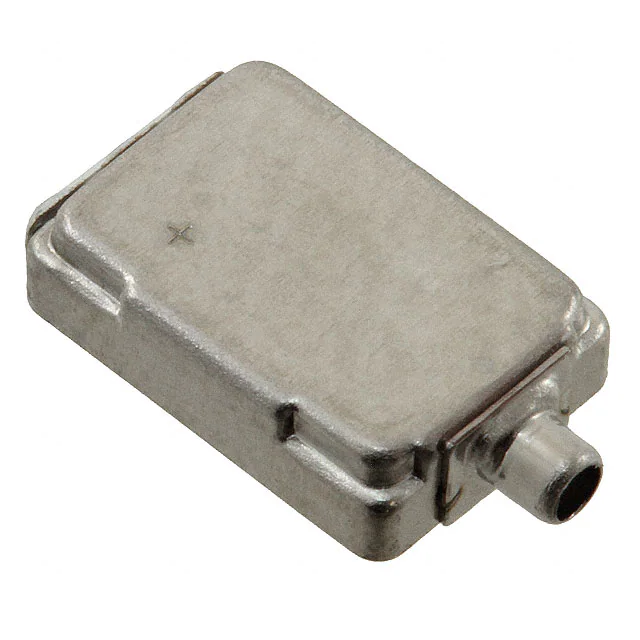

BL-23958-000MIC PIEZO ANALOG OMNI -69DB |
1,914 | - |
|
Datasheet | BL | Tray | Obsolete | Piezo | Analog | Omnidirectional | 20 Hz ~ 10 kHz | -69dB ±3dB @ 74dB SPL | - | 4 kOhms | 1.3 V | - | 160 µA | Side | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|
TD-24610-000MIC COND ANALOG UNI -57.5DB |
1,016 | - |
|
Datasheet | TD | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 9.5 kHz | -57.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Bottom, Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
TM-26613-D20MIC COND ANALOG UNI -55DB |
2,339 | - |
|
Datasheet | TM | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 5.8 kHz | -55dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.068" (1.73mm) | Square | - | - |
|
TM-26652-D25MIC COND ANALOG UNI |
3,645 | - |
|
Datasheet | TM | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TO-24603-B63MIC COND ANALOG OMNI -56.5DB |
2,212 | - |
|
Datasheet | TO | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|

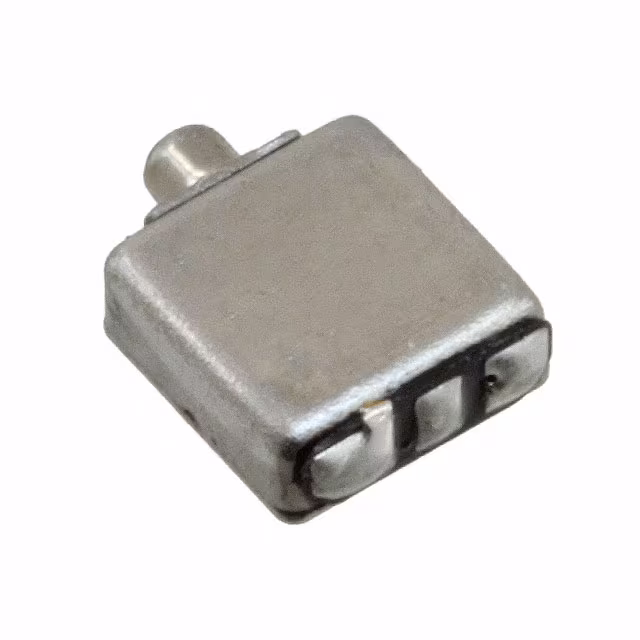

TO-30031-000MIC COND ANALOG OMNI -56.5DB |
3,122 | - |
|
Datasheet | TO | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 7.2 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
MR-28406-146MICROPHONE COND ANALOG OMNI |
3,977 | - |
|
Datasheet | MR | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.7 kHz | -61dB +3dB, -4dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Top | Waterproof | Wire Leads | 0.871" Dia (22.12mm) | 0.299" (7.60mm) | Circular | - | - |
|
|
BL-27242-000MIC PIEZO ANALOG |
1,517 | - |
|
Datasheet | BL | Tray | Obsolete | Piezo | Analog | - | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG-26163-D65MICROPHONE COND ANALOG OMNI |
2,655 | - |
|
Datasheet | FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
Microphones FAQ
How can I narrow the current Microphones selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Microphones parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
