Microphones
Compare the current Microphones Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP34DT04TR-C1MIC MEMS DIGITAL PDM OMNI -26DB |
2,256 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 10 mA | Top | - | Surface Mount | 0.118" L x 0.157" W (3.00mm x 4.00mm) | 0.079" (2.00mm) | Rectangular | - | - |
|
MP23AB01DHTRMIC MEMS ANALOG OMNI -38DB |
3,508 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 400 Ohms | 2.7 V | 2.3 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.043" (1.10mm) | Rectangular | - | - |
|

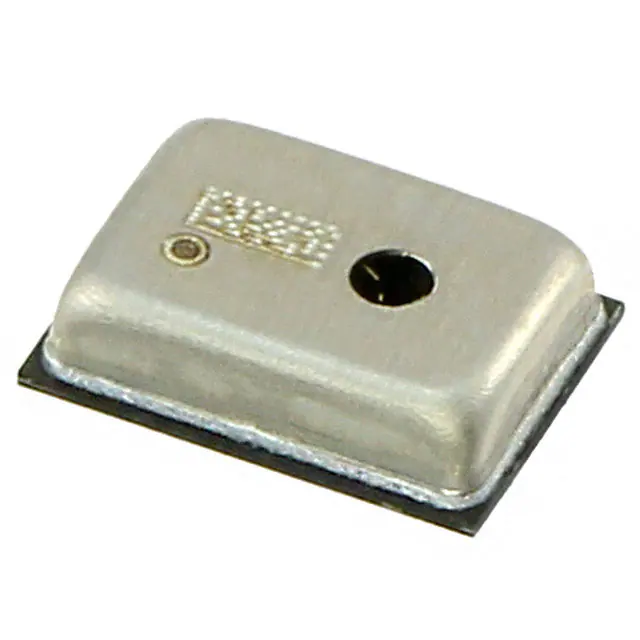

MP34DT02TRMIC MEMS DIGITAL PDM OMNI -26DB |
4,121 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 60dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.046" (1.16mm) | Rectangular | - | - |
|
MP23AB02BTRMIC MEMS ANALOG OMNI -38DB |
4,639 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 220 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.043" (1.08mm) | Rectangular | - | - |
|
MP45DT02TRMIC MEMS DIGITAL PDM OMNI -26DB |
4,175 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.054" (1.38mm) | Rectangular | - | - |
|

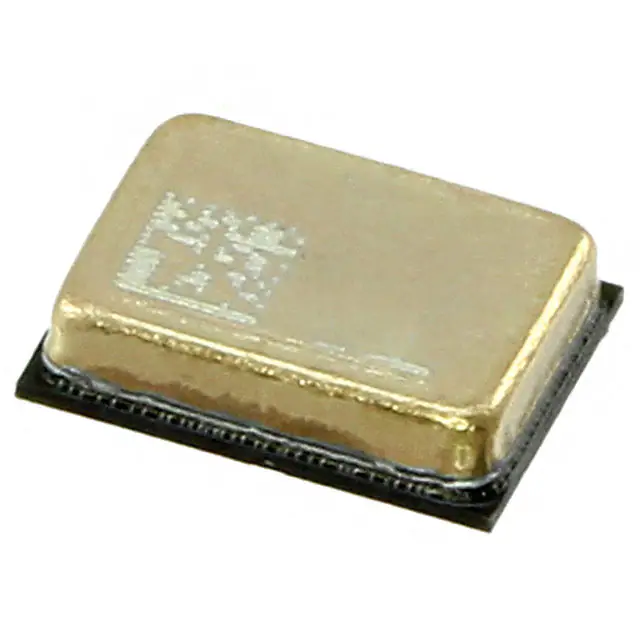

MP34DB02TRMIC MEMS DIGITAL PDM OMNI -26DB |
3,796 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|

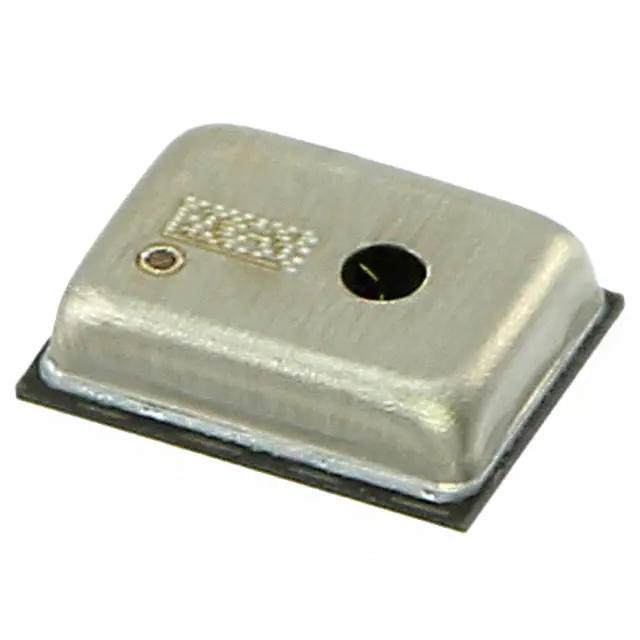

MP34DT01TR-MMIC MEMS DIGITAL PDM OMNI -26DB |
4,140 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.046" (1.16mm) | Rectangular | - | - |
|
|
MP34DT05TRMIC MEMS DIGITAL PDM OMNI -26DB |
1,724 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
MP45DT02TR-MMIC MEMS DIGITAL PDM OMNI -26DB |
1,372 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
MP34DB01TRMIC MEMS DIGITAL PDM OMNI -26DB |
1,861 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
Microphones FAQ
How can I narrow the current Microphones selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Microphones parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
