Microphones
Browse available Microphones components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BL-23497-000MICROPHONE PIEZO ANALOG OMNI |
3,448 | - |
|
Datasheet | BL | Bulk | Obsolete | Piezo | Analog | Omnidirectional | 20 Hz ~ 10 kHz | -69dB ±3dB @ 74dB SPL | - | 4 kOhms | 3 V | - | 160 µA | Top | - | Wire Leads | 0.500" Dia (12.70mm) | 1.008" (25.60mm) | Circular | - | - |
|
MD6022APC-0MIC COND OMNI -42DB 0.236"DIA |
4,083 | - |
|
Datasheet | - | Bulk | Obsolete | Electret Condenser | - | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB | 55dB | 2.2 kOhms | 2 V | - | - | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.087" (2.20mm) | Circular | - | - |
|
BW-21789-000MIC COND ANALOG NC -55DB |
1,073 | - |
|
Datasheet | BW | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 4 kHz | -55dB ±4dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Top | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|
FG-23742-D36MIC COND ANLG OMNI -63DB 0.101"D |
4,115 | - |
|
Datasheet | FG | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -63dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Wire Leads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
SP0102BE3-5MIC SISONIC SMD 1.5-5.5V 0-HGHT |
4,357 | - |
|
Datasheet | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPM0102ND3-2MIC MEMS ANALOG OMNI -42DB |
4,439 | - |
|
Datasheet | SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -42dB ±4dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 5.5 V | 250 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.067" (1.70mm) | Rectangular | - | - |
|
SPM0102NE3-2MIC SISONIC SMD 1.5-5.5V MINI |
4,124 | - |
|
Datasheet | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPM0103ND3-2MIC MEMS ANALOG OMNI -22DB |
2,304 | - |
|
Datasheet | SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -22dB ±4dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 5.5 V | 350 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.067" (1.70mm) | Rectangular | - | - |
|
SPM0103NE3-2MIC SISONIC SMD 1.5-5.5V MINI |
2,147 | - |
|
Datasheet | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP0103BE3-5MIC SISONIC SMD 1.5-5.5V 0-HGHT |
2,826 | - |
|
Datasheet | SiSonic™ | Cut Tape (CT) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±4dB @ 94dB SPL | 59dB | 100 Ohms | - | 1.5 V ~ 5.5 V | 350 µA | Top | - | Solder Pads | 0.242" L x 0.148" W (6.15mm x 3.76mm) | 0.073" (1.85mm) | Rectangular | - | - |
|
|
EK-23029-C36MIC OMNI .9-10VDC -45DB SENS |
2,690 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EK-23033-C36MIC COND ANALOG OMNI -53DB |
3,973 | - |
|
Datasheet | EK | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
EM-24046-C36MIC COND ANALOG OMNI -56.5DB |
2,793 | - |
|
Datasheet | EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -56.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
EM-24068-C36MIC OMNI .9-10VDC -36DB SENS |
1,049 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG-26163-000MICROPHONE COND ANALOG OMNI |
3,866 | - |
|
Datasheet | FG | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 500 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|

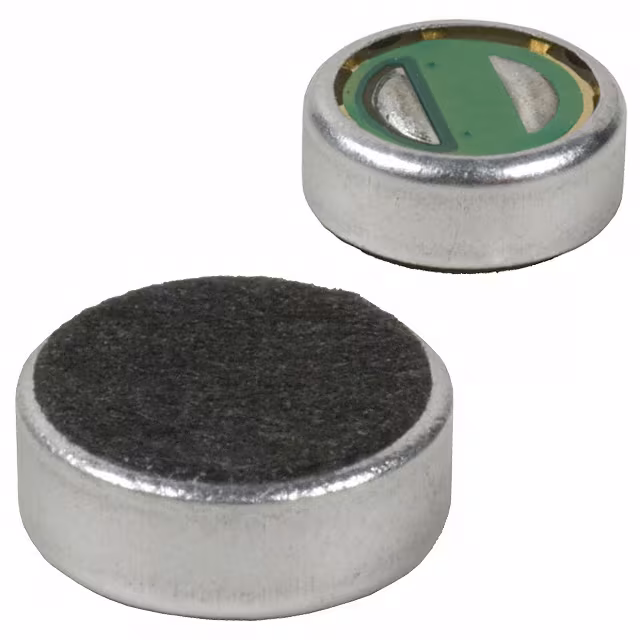

MB6022USC-3MIC COND ANLG UNI -47DB 0.236"D |
3,181 | - |
|
Datasheet | MB | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 10 kHz | -47dB ±3dB @ 94dB SPL | 50dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|

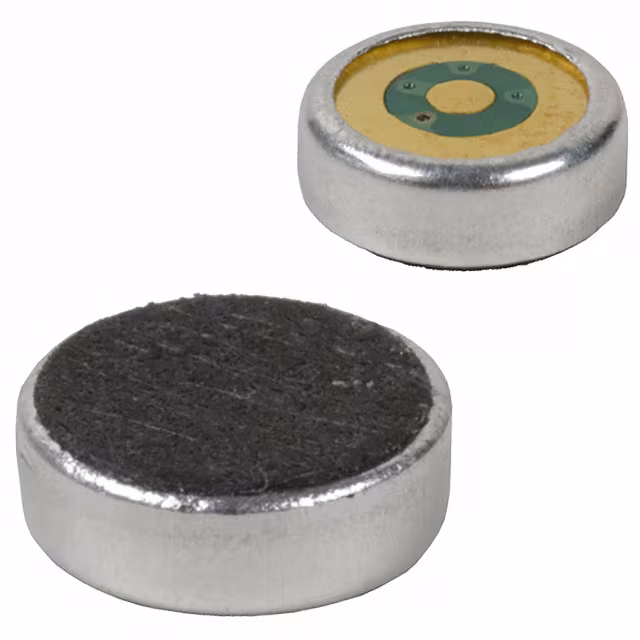

MB6022ABC-3MIC COND ANLG OMNI -45DB 0.236"D |
3,310 | - |
|
Datasheet | MB | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -45dB ±2dB @ 94dB SPL | 60dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Solderless (Bullseye) | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|

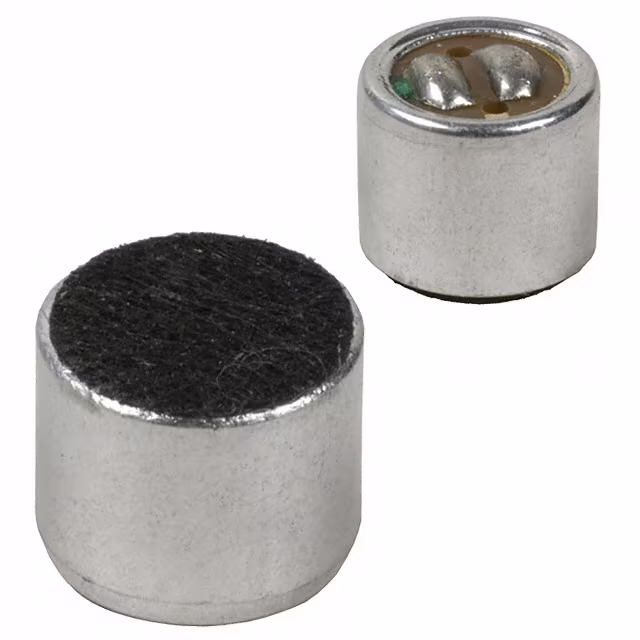

MB6052USZ-2MIC COND ANLG UNI -44DB 0.236"D |
2,008 | - |
|
Datasheet | MB | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 10 kHz | -44dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.213" (5.40mm) | Circular | - | - |
|

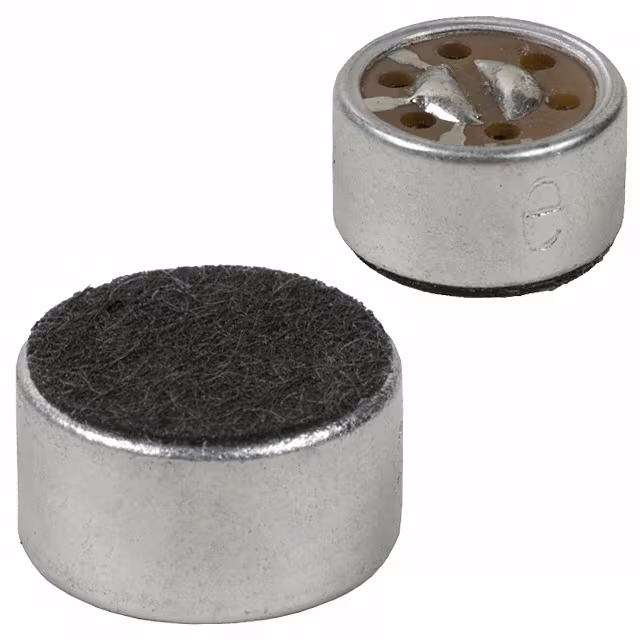

MD9752NSZ-1MIC COND ANLG NC -40DB 0.382"DIA |
3,109 | - |
|
Datasheet | MD | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 10 kHz | -40dB ±3dB @ 94dB SPL | 55dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.205" (5.20mm) | Circular | - | - |
|
|
EM-23979-D52MIC MATCHED PAIR SIDE PORT |
4,521 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Microphones FAQ
What Microphones components can I source from EGOO?
You can browse available Microphones product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Microphones parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
