Photodiodes
Compare the current Photodiodes Optical Sensors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

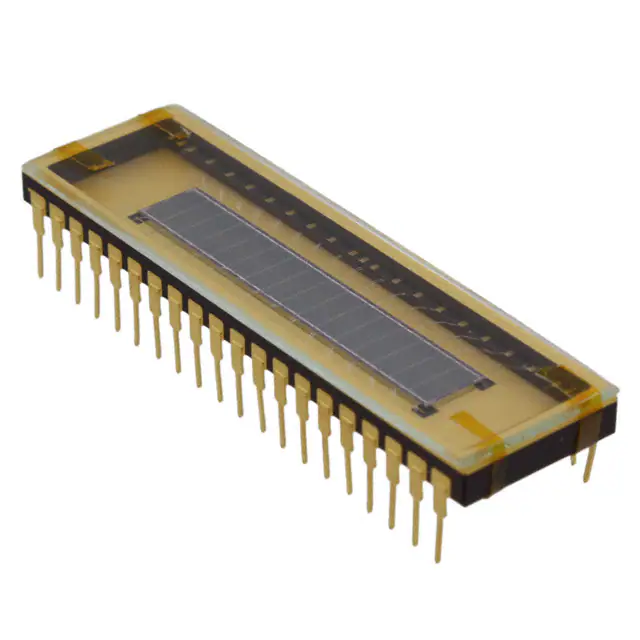

AXUV16ELGSENSOR PHOTODIODE 820NM 40DIP |
3,999 | - |
|
Datasheet | AXUV | - | Bulk | Active | 820nm | - | 250nm ~ 1100nm | - | - | 500ns | - | - | 10mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
ODD-1BSENSOR PHOTODIODE 940NM TO18 |
1,313 | - |
|
Datasheet | Visible | - | Bulk | Active | 940nm | Blue | 400nm ~ 1100nm | - | 0.28 A/W @ 450nm | 8ns | 60 V | 200pA | 1mm² | - | -55°C ~ 100°C | - | - | Through Hole |
|
UVG100SENSOR PHOTODIODE 254NM 10MM |
1,241 | - |
|
Datasheet | UVG | - | Bulk | Active | 254nm | - | - | - | 0.09 A/W @ 254nm | 10µs | 10 V | - | 100mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
ODA-6W-500MSENSOR PHOTODIODE 940NM TO39 |
2,513 | - |
|
Datasheet | Hybrid | - | Tray | Active | 940nm | Infrared (NIR)/Red | 400nm ~ 1100nm | - | - | - | - | - | 6mm² | - | -25°C ~ 100°C | - | - | Through Hole |
|
BXP-25MSENSOR PHOTODIODE |
2,710 | - |
|
Datasheet | B | TO-5 Variant, 2 Leads, Lens Top Metal Can | Tray | Active | 3.8µm | Infrared (NIR) | - | PIN | 15 KV/W @ 3800nm | 5µs | - | - | 4mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|
SXUV5SENSOR PHOTODIODE 2.5MM TO39 |
1,535 | - |
|
Datasheet | SXUV | - | Bulk | Active | - | - | - | - | - | 1ns | 20 V | - | 2.5mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
AXUV20HS1SENSOR PHOTODIODE 820NM |
4,241 | - |
|
Datasheet | AXUV | - | Tray | Active | 820nm | - | 250nm ~ 1100nm | - | - | - | 160 V | 100nA | 19.7mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|

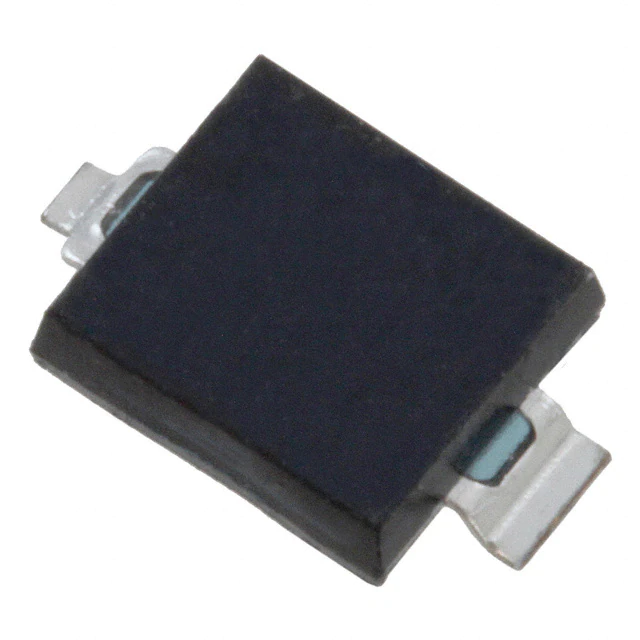

ODD-8SMD-DFSENSOR PHOTODIODE 940NM LOCAP |
4,036 | - |
|
Datasheet | General | - | Tape & Reel (TR) | Obsolete | 940nm | - | 730nm ~ 1100nm | - | 0.44 A/W @ 940nm | 50ns | 170 V | 5nA | 8mm² | - | -25°C ~ 85°C | - | - | Surface Mount |
|

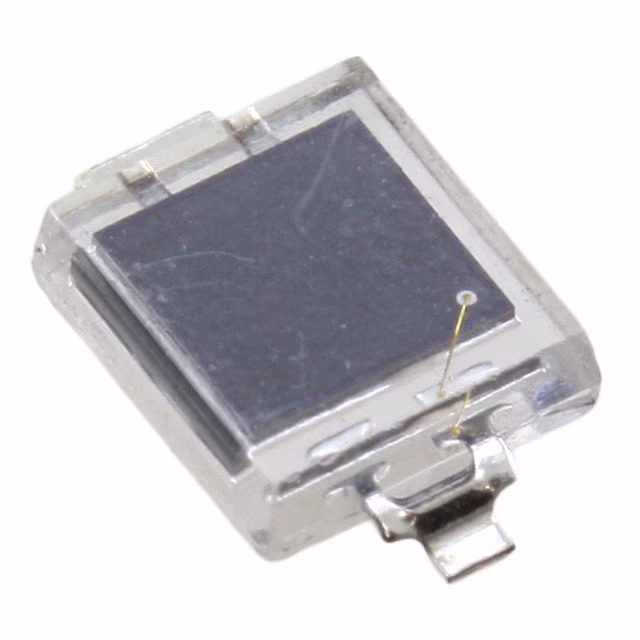

ODD-8SMDSENSOR PHOTODIODE 940NM LOCAP |
4,990 | - |
|
Datasheet | General | - | Tape & Reel (TR) | Obsolete | 940nm | - | 400nm ~ 1100nm | - | 0.44 A/W @ 940nm | 50ns | 170 V | 5nA | 8mm² | - | -25°C ~ 85°C | - | - | Surface Mount |
|

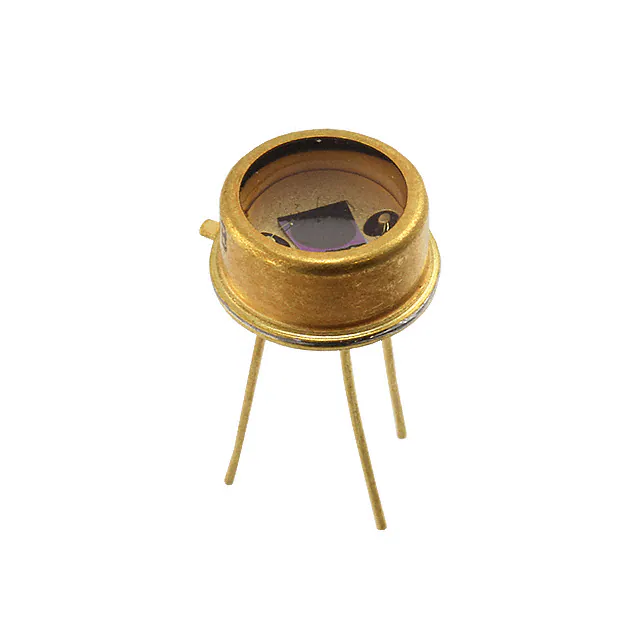

ODD-5WBSENSOR PHOTODIODE 940NM TO5 |
3,716 | - |
|
Datasheet | Visible | - | Tray | Active | 940nm | Blue | 400nm ~ 1100nm | - | 0.28 A/W @ 450nm | 10ns | 60 V | 1nA | 5mm² | - | -55°C ~ 100°C | - | - | Through Hole |
Photodiodes FAQ
How can I narrow the current Photodiodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Photodiodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
