Logic Output Optoisolators
Compare the current Logic Output Optoisolators Optocouplers, Optoisolators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N137-X009TOPTOISO 5.3KV 1CH OPN DRAIN 8SMD |
3,478 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
SFH6720TOPTOISO 4KV PUSH PULL 8SOIC |
3,156 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
SFH6721TOPTOISO 4KV PUSH PULL 8SOIC |
1,030 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 4000Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|

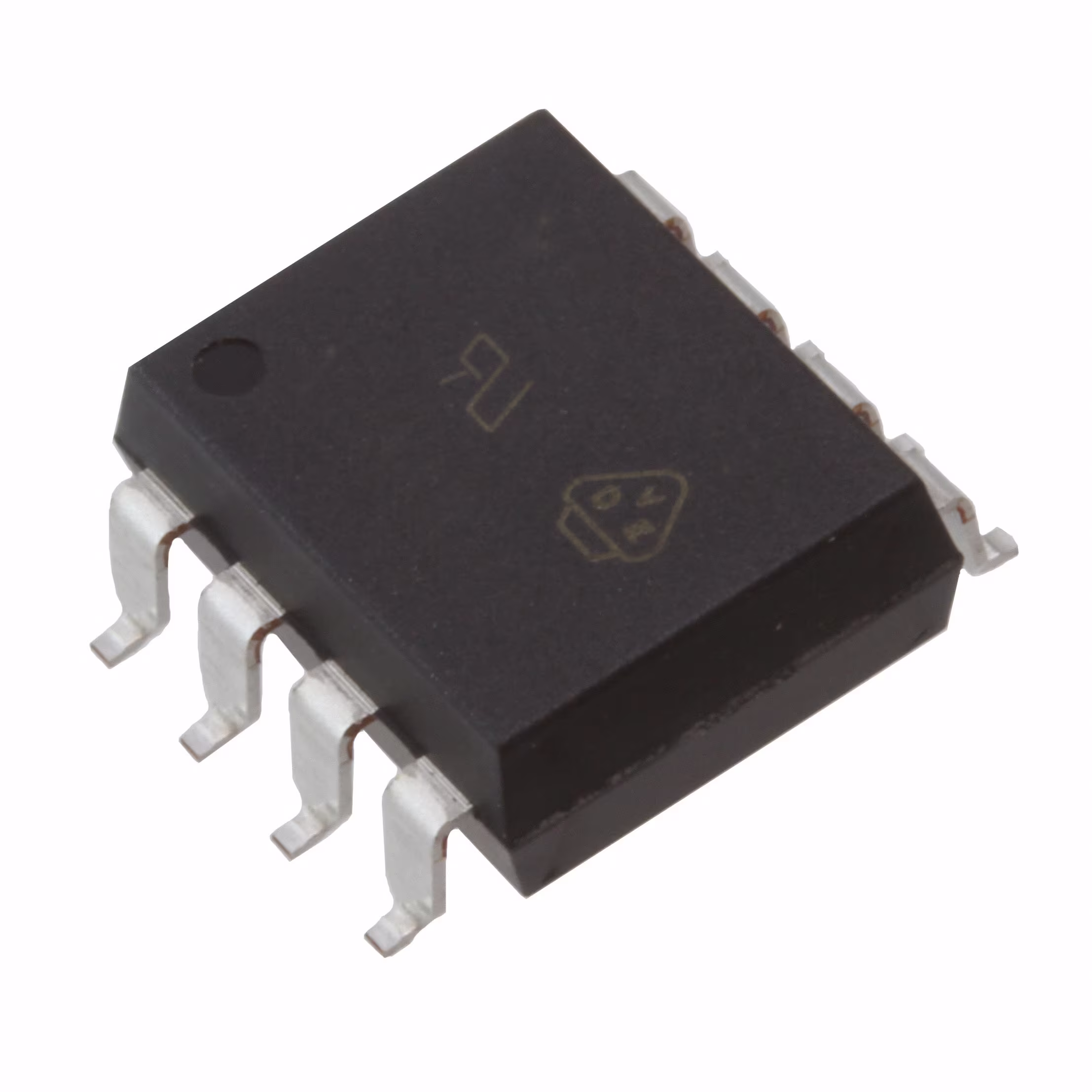

SFH6732-X007TOPTOISO 5.3KV 2CH PUSH PULL 8SMD |
2,844 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6756TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
1,285 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
SFH6731OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
4,389 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6732OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
3,465 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
VO2630-X006OPTOISO 5.3KV 2CH OPEN DRN 8DIP |
1,229 | - |
|
Datasheet | - | 8-DIP (0.400", 10.16mm) | Tube | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
SFH6752-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
3,026 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 10kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
SFH6701-X009TOPTOISO 5.3KV PUSH PULL 8SMD |
2,445 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
Logic Output Optoisolators FAQ
How can I narrow the current Logic Output Optoisolators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Logic Output Optoisolators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
