Transistor, Photovoltaic Output Optoisolators
Compare the current Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPI123OPTOISOLTR 15KV DARLINGTON AXIAL |
100 | - |
|
Datasheet | - | Axial - 5 Leads | Bulk | Active | 1 | 15000VDC | 50% @ 10mA | - | - | 40µs, 40µs | DC | Darlington | 20V | - | 1.5V (Max) | 150 mA | 1.2V | - | - | -55°C ~ 125°C | Through Hole | Axial |
.jpg "HCC242")
|

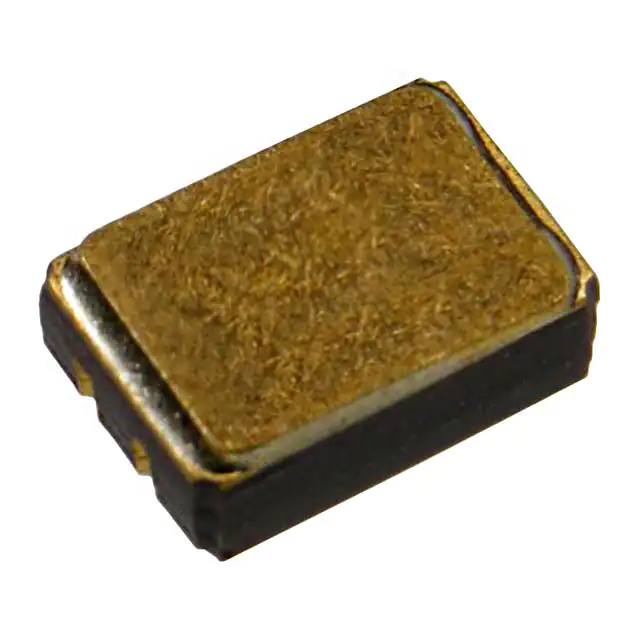

HCC242OPTOISOLATOR 1KV TRANS 4-CLCC |
1,603 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-CLCC (5.59x3.81) |
|
|
HCC242TXVOPTOISOLATOR 1KV TRANS 4-CLCC |
2,217 | - |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Obsolete | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-CLCC (5.59x3.81) |
|
4N24ATXVOPTOISO 1KV TRANS W/BASE TO78-6 |
1,278 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.3V (Max) | 40 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JAN4N22AOPTOISO 1KV TRANS W/BASE TO78-6 |
2,738 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 25% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
|
JANTX4N23U6 PIN, SMT OPTICALLY COUPLED ISO |
4,856 | - |
|
Datasheet | - | 6-LCC | Bulk | Obsolete | 1 | 1000VDC | 60% @ 10mA | - | - | 15µs, 15µs (Max) | DC | Transistor with Base | 35V | 6mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-LCC (4.32x6.22) |
|
4N49UOPTOISO 1KV TRANS W/BASE 6LCC |
1,189 | - |
|
Datasheet | - | 6-SMD, No Lead | Bulk | Active | 1 | 1000Vrms | 200% @ 2mA | - | - | 20µs, 20µs | DC | Transistor with Base | 35V | 50mA | 1.5V | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-LCC (6.22x4.32) |
|
|
JANTX4N49OPTOISO 1KV TRANS W/BASE TO78-6 |
2,301 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 200% @ 1mA | 1000% @ 1mA | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
|
3C91COPTOISOLATOR 1KV TRANS TO72-4 |
1,498 | - |
|
Datasheet | - | TO-206AF, TO-72-4 Metal Can | Bulk | Active | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
JANTX4N24AOPTOISO 1KV TRANS W/BASE TO78-6 |
4,445 | - |
|
Datasheet | - | TO-78-6 Metal Can | Bulk | Active | 1 | 1000VDC | 100% @ 10mA | - | - | 20µs, 20µs (Max) | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
Transistor, Photovoltaic Output Optoisolators FAQ
How can I narrow the current Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
