Transistor, Photovoltaic Output Optoisolators
Compare the current Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "TLP293(GR-TPL,E")
|
TLP293(GR-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
41,873 | - |
|
Datasheet | - | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
|
TLP293(BL-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
20,544 | - |
|
Datasheet | - | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
TLP182(GB-TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
24,035 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SOP |
|
|
TLP292(GB-TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
13,740 | - |
|
Datasheet | - | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
|
TLP292(TPL,EOPTOISOLATOR 3.75KV TRANS 4-SO |
3,524 | - |
|
Datasheet | - | 4-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SO |
|
TLP383(GR-TPL,EOPTOISO 5KV TRANSISTOR SO6L |
14,712 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 4 Lead |
|
|
TLP188(TPL,EOPTOISO 3.75KV TRANS 6-SO 4 LEAD |
7,264 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
|
|
TLP187(TPL,EOPTOISO 3.75KV DARL 6-SO, 4 LEAD |
20,044 | - |
|
Datasheet | - | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 6-SOP |
.JPG "TLP109(TPL,E")
|
TLP109(TPL,EOPTOISO 3.75KV TRANS 6-SO 5 LEAD |
7,541 | - |
|
Datasheet | - | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | - | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 8mA | 1.64V | 20 mA | - | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|

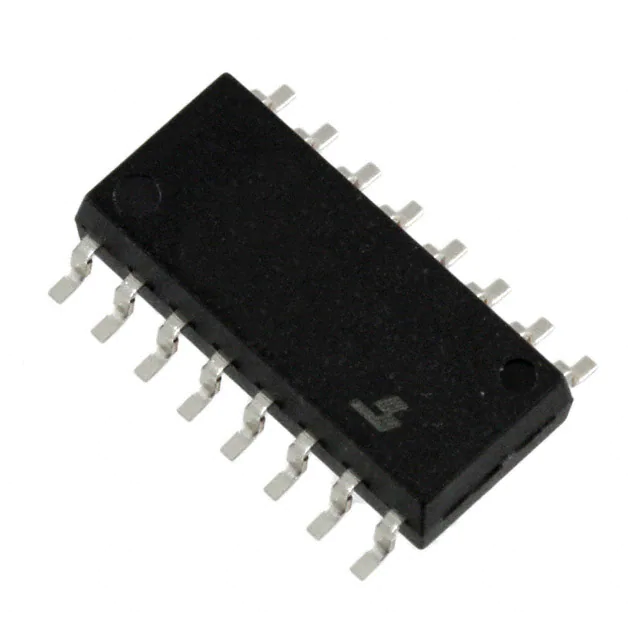

TLP291-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
80,072 | - |
|
Datasheet | - | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
Transistor, Photovoltaic Output Optoisolators FAQ
How can I narrow the current Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
