Transistor, Photovoltaic Output Optoisolators
Compare the current Transistor, Photovoltaic Output Optoisolators Optocouplers, Optoisolators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-4701#320OPTOISO 5KV DARL 8-DIP GULL WING |
1,230 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | - | - | 0°C ~ 70°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-2730#020OPTOISO 5KV 2CH DARLINGTON 8-DIP |
1,043 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 2 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | - | - | 0°C ~ 70°C | Through Hole | 8-DIP |
|
HCPL-0500#060OPTOISO 3.75KV TRANS W/BASE 8SO |
4,526 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 5% @ 16mA | - | 200ns, 1.3µs | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO |
|
|
HCPL-2730#320OPTOISOLTR 5KV 2CH DARL 8-DIP GW |
2,503 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 2 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 7V | 60mA | 1.4V | 12 mA | 100mV | - | - | 0°C ~ 70°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-4701#360OPTOISOLATOR 3.75KV DARL 8DIP GW |
1,937 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | - | - | 0°C ~ 70°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-4701#060OPTOISO 3.75KV DARLINGTON 8-DIP |
1,174 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | - | - | 0°C ~ 70°C | Through Hole | 8-DIP |
|
|
HCPL-4701#020OPTOISOLTR 5KV DARLINGTON 8-DIP |
3,062 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 10 mA | - | - | - | 0°C ~ 70°C | Through Hole | 8-DIP |
|

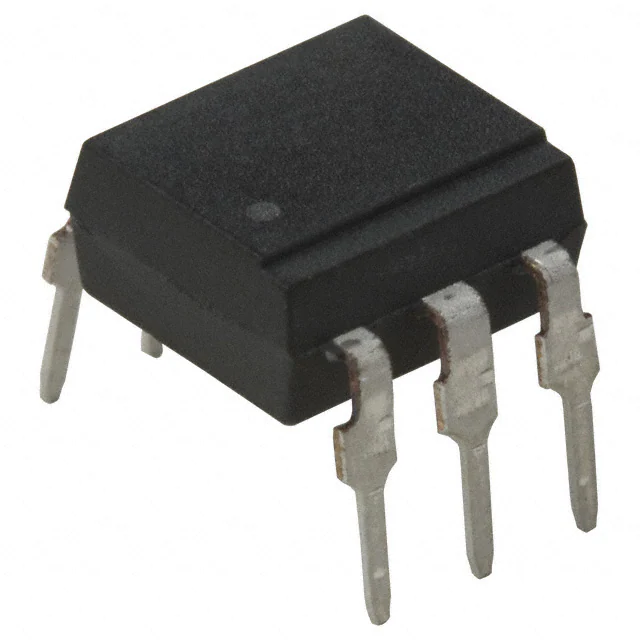

4N46#060OPTOISO 3.75KV DARL W/BASE 6DIP |
2,786 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 200% @ 10mA | 1000% @ 10mA | 5µs, 150µs | - | DC | Darlington with Base | 20V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
|
HCPL-3700-320OPTOISO 5KV DARL 8-DIP GULL WING |
3,745 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | - | - | 4µs, 10µs | 20µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-J454#300OPTOISO 3.75KV TRANSISTOR 8SMD |
1,367 | - |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 19% @ 16mA | 60% @ 16mA | 500ns, 800ns | - | DC | Transistor | 20V | 8mA | 1.59V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
Transistor, Photovoltaic Output Optoisolators FAQ
How can I narrow the current Transistor, Photovoltaic Output Optoisolators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Transistor, Photovoltaic Output Optoisolators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
