Triac, SCR Output Optoisolators
Browse available Triac, SCR Output Optoisolators components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL4108OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,532 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
FOD420SVOPTOISOLATOR 5KV TRIAC 6SMD |
1,451 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
IL410-X009TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,345 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|

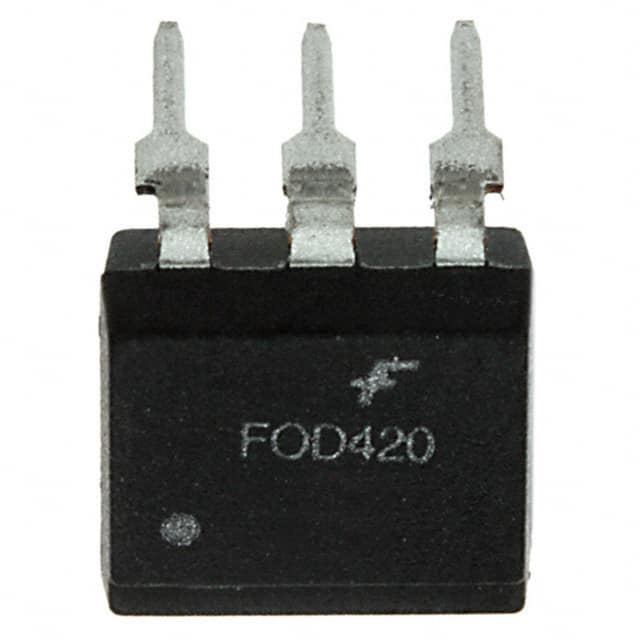

FOD420OPTOISOLATOR 5KV TRIAC 6DIP |
1,250 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
FOD420SOPTOISOLATOR 5KV TRIAC 6SMD |
784 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL |
|
FOD4218OPTOISOLATOR 5KV TRIAC 6DIP |
1,040 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
FOD4218SVOPTOISOLATOR 5KV TRIAC 6SMD |
520 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
.jpg "IL4216")
|
IL4216OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,814 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4118-X007OPTOISOLATOR 5.3KV TRIAC |
627 | - |
|
Datasheet | - | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4118-X009TOPTOISOLATOR 5.3KV TRIAC |
1,977 | - |
|
Datasheet | - | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
FOD4208SDVOPTOISOLATOR 5KV TRIAC 6SMD |
6,505 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
FOD4118OPTOISOLATOR 5KV TRIAC 6DIP |
1,106 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
FOD4218SDVOPTOISOLATOR 5KV TRIAC 6SMDIP-B |
8,020 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
APC-3052SOP4, DC INPUT, RANDOM-PHASE PHO |
8,789 | - |
|
Datasheet | APC-305X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 10mA | - | 257µA | - | 1.24V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | CQC, CSA, cUL, UL, VDE |
|
|
MOC3021TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
599 | - |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3010VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
960 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3010SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
194 | - |
|
Datasheet | - | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3060XOPTOISOLATOR 5.3KV TRIAC 6DIP |
862 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 30mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3043XOPTOISOLATOR 5.3KV TRIAC 6DIP |
200 | - |
|
Datasheet | - | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
MOC3022TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
200 | - |
|
Datasheet | - | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
Triac, SCR Output Optoisolators FAQ
What Triac, SCR Output Optoisolators components can I source from EGOO?
You can browse available Triac, SCR Output Optoisolators product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Triac, SCR Output Optoisolators parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
