Oscillators
Compare the current Oscillators Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWX815-20.0MXTAL OSC XO 20.0000MHZ HCMOS SMD |
3,570 | - |
|
Datasheet | CWX815 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS | 5V | ±25ppm | - | -20°C ~ 70°C | - | 45mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CWX815-80.0MXTAL OSC XO 80.0000MHZ HCMOS SMD |
4,398 | - |
|
Datasheet | CWX815 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 80 MHz | Enable/Disable | HCMOS | 5V | ±25ppm | - | -20°C ~ 70°C | - | 45mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
CWX825-10.0MXTAL OSC XO 10.0000MHZ HCMOS SMD |
3,544 | - |
|
Datasheet | CWX825 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 10 MHz | Enable/Disable | HCMOS | 5V | ±50ppm | - | -20°C ~ 70°C | - | 45mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CWX815-32.768MXTAL OSC XO 32.7680MHZ HCMOS SMD |
4,020 | - |
|
Datasheet | CWX815 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 32.768 MHz | Enable/Disable | HCMOS | 5V | ±25ppm | - | -20°C ~ 70°C | - | 45mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|

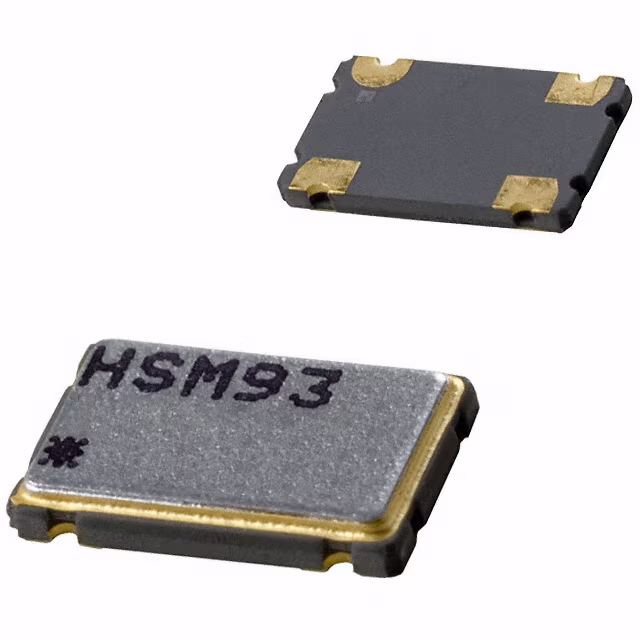

HSM943-12.288MXTAL OSC XO 12.2880MHZ LVCMOS |
6,167 | - |
|
Datasheet | HSM9 | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | 12.288 MHz | Enable/Disable | LVCMOS | 3.3V | ±20ppm | - | -10°C ~ 70°C | - | - | - | Surface Mount | - | 0.295" L x 0.197" W (7.50mm x 5.00mm) | 0.055" (1.40mm) |
|
CWX823-014.31818MXTAL OSC XO 14.31818MHZ LVCMOS |
7,247 | - |
|
Datasheet | CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 14.31818 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
CWX823-015.36MXTAL OSC XO 15.3600MHZ LVCMOS |
7,969 | - |
|
Datasheet | CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 15.36 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CWX823-016.384MXTAL OSC XO 16.3840MHZ LVCMOS |
8,105 | - |
|
Datasheet | CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 16.384 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CWX823-019.44MXTAL OSC XO 19.4400MHZ LVCMOS |
6,619 | - |
|
Datasheet | CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 19.44 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
CWX823-020.48MXTAL OSC XO 20.4800MHZ LVCMOS |
6,782 | - |
|
Datasheet | CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20.48 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
Oscillators FAQ
How can I narrow the current Oscillators selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Oscillators parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
