Oscillators
Compare the current Oscillators Crystals, Oscillators, Resonators selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HD-950_Series.jpg "CCHD-950-25-70.000")
|
CCHD-950-25-70.000XTAL OSC XO 70.0000MHZ HCMOS SMD |
7,700 | - |
|
Datasheet | CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 70 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CCHD-950-25-74.1758XTAL OSC XO 74.1758MHZ HCMOS SMD |
3,806 | - |
|
Datasheet | CCHD-950 | 4-SMD, No Lead | Strip | Active | Crystal | XO (Standard) | 74.1758 MHz | - | HCMOS | 3.3V | ±25ppm | - | 0°C ~ 70°C | - | 25mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
CVPD-034X-50-77.76XTAL OSC VCXO 77.7600MHZ LVPECL |
9,930 | - |
|
Datasheet | CVPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 77.76 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|

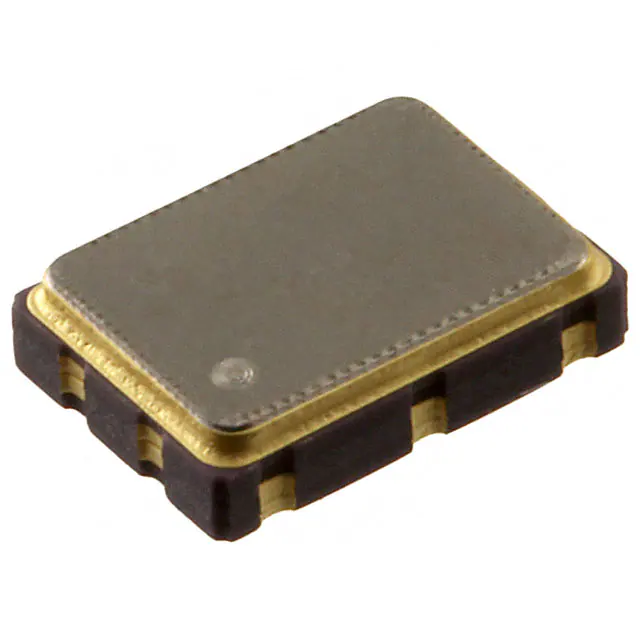

CVPD-037X-156.250XTAL OSC VCXO 156.2500MHZ LVPECL |
5,773 | - |
|
Datasheet | CVPD-037X | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 56mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
CVPD-920-100XTAL OSC VCXO 100.0000MHZ LVPECL |
4,100 | - |
|
Datasheet | CVPD-920 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 100 MHz | Enable/Disable | LVPECL | 3.3V | - | ±20ppm | 0°C ~ 70°C | - | 88mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|

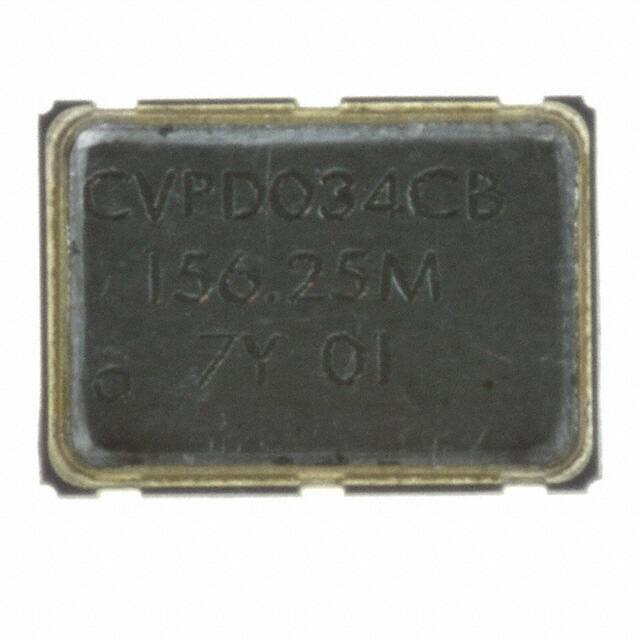

CVPD-034-50-156.25XTAL OSC VCXO 156.2500MHZ LVPECL |
5,907 | - |
|
Datasheet | CVPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | 0°C ~ 70°C | - | 88mA | - | Surface Mount | - | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CVPD-914X-50-77.76XTAL OSC VCXO 77.7600MHZ LVPECL |
8,157 | - |
|
Datasheet | CVPD-914 | 6-SMD, No Lead | Strip | Obsolete | Crystal | VCXO | 77.76 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.559" L x 0.360" W (14.20mm x 9.14mm) | 0.209" (5.30mm) |
|
|
CVPD-034X-50-155.52XTAL OSC VCXO 155.5200MHZ LVPECL |
2,456 | - |
|
Datasheet | CVPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 155.52 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CVPD-034X-50-156.25XTAL OSC VCXO 156.2500MHZ LVPECL |
4,177 | - |
|
Datasheet | CVPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | -40°C ~ 85°C | - | 88mA | - | Surface Mount | - | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.071" (1.80mm) |
|
|
CVPD-034-50-161.1328XTAL OSC VCXO 161.1328MHZ LVPECL |
9,716 | - |
|
Datasheet | CVPD-034 | 6-SMD, No Lead | Strip | Active | Crystal | VCXO | 161.1328 MHz | Enable/Disable | LVPECL | 3.3V | - | ±50ppm | 0°C ~ 70°C | - | 88mA | - | Surface Mount | - | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.071" (1.80mm) |
