Counters, Hour Meters
Browse available Counters, Hour Meters components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Operating Mode | Count Rate | Time Format | Number of Characters Per Row | Display Type | Display Characters - Height | Input Type | Output Type | Voltage - Supply | Reset | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUB4L820COUNTER LCD 8 CHAR 3.6V PANEL MT |
2,702 | - |
|
Datasheet | CUB4 | Box | Active | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Red Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
K3MA-F 24VAC/VDCCOUNTER LCD 5 CHAR 24V PANEL MT |
2,136 | - |
|
Datasheet | K3MA-F | Bulk | Active | Tachometer | Up | 5kHz | - | 5 | LCD - Dual Color Characters, Backlight | 0.560" (14.20mm) | No Voltage, Voltage | - | 24VAC/DC | - | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
99772714COUNTER 7 CHAR 187-264V PANEL MT |
2,193 | - |
|
Datasheet | CHM48 | Box | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 187 ~ 264VAC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
700LN001N1248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
1,573 | - |
|
Datasheet | 700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Connector | IP66 - Dust Tight, Water Resistant |
|
H7EC-NPCOUNTER LCD 8 CHAR PANEL MOUNT |
4,032 | - |
|
Datasheet | H7EC | Box | Active | Totalizer | Up | 1kHz | - | 8 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
87622070COUNTER LCD 8 CHAR PANEL MOUNT |
4,810 | - |
|
Datasheet | CTR24 | Box | Active | Totalizer | Up, Down, Command | 30Hz | - | 8 | LCD - Black Characters | 0.314" (8.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ET-N1-BCOUNTER LCD 7 CHAR PANEL MOUNT |
2,955 | - |
|
Datasheet | H7ET | Box | Active | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

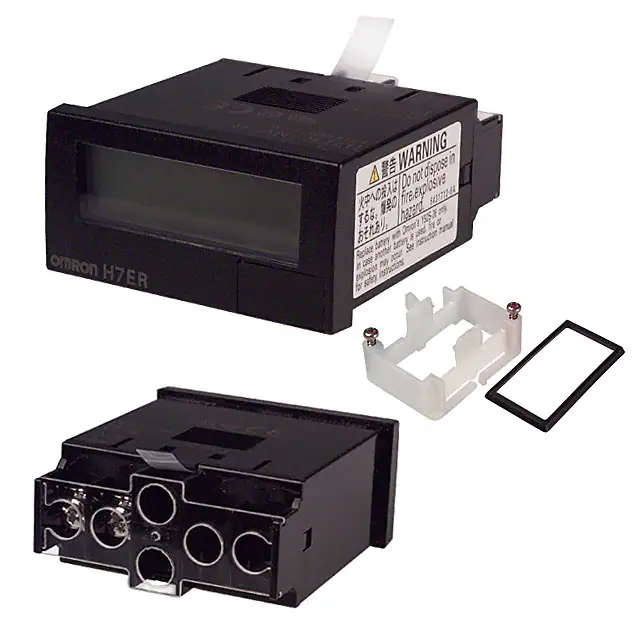

H7ER-NV-BTACHOMETER LCD 4 CHAR PANEL MT |
3,347 | - |
|
Datasheet | H7ER | Bulk | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

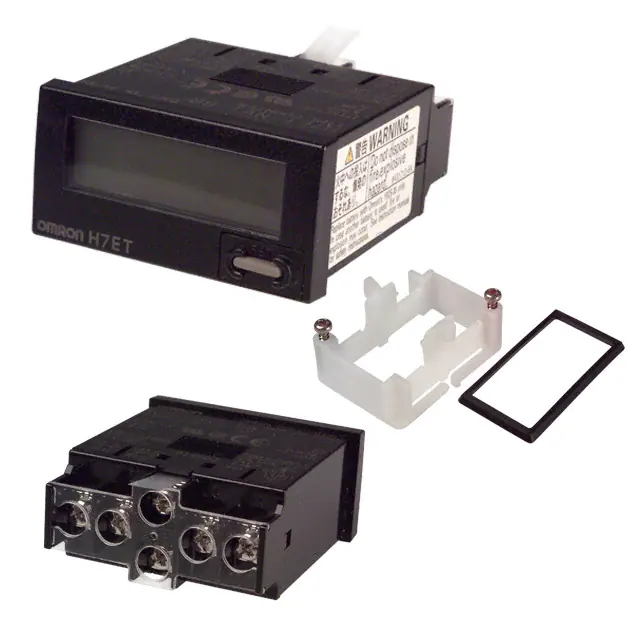

H7ET-NV1-BHCOUNTER LCD 7 CHAR PANEL MOUNT |
2,868 | - |
|
Datasheet | H7ET | Bulk | Active | Time Counter (Hour Meter) | Up | - | 9999hrs59.9min; 999hrs59min59sec | 7 | LCD - Black Characters, Green Backlight | 0.338" (8.60mm) | Voltage | - | None Required (Battery Included), 24VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CC-ASCOUNTER,DIGITAL,1-STAGE/TOTAL/PR |
3,301 | - |
|
Datasheet | H7CC | Box | Active | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
C48CB003COUNTER LCD 6 CHAR 85-250V PANEL |
2,903 | - |
|
Datasheet | C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2), Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXLCRU0COUNTER LED 6 CHAR 50-250V PANEL |
3,610 | - |
|
Datasheet | PAX®LITE | Box | Active | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 25kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Relay (2) | 50 ~ 250VAC, 21.6 ~ 250VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD102COUNTER LCD 6 CHAR 85-250V PANEL |
4,458 | - |
|
Datasheet | C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXCK000COUNTER LED 6 CHAR 85-250V PANEL |
4,343 | - |
|
Datasheet | PAX | Box | Active | Time Counter, Timer | Up | 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD112COUNTER LCD 6 CHAR 24V PANEL MT |
1,883 | - |
|
Datasheet | C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2) | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CD005COUNTER LCD 6 CHAR 85-250V PANEL |
3,389 | - |
|
Datasheet | C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LD2006P0COUNTER LED 6 CHAR 50-250V CHASS |
2,295 | - |
|
Datasheet | LD | Bulk | Active | Batch, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 2.250" (57.00mm) | Voltage | Relay (2) | 50 ~ 250VAC | External, Front Panel, Programmable | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LD400600COUNTER LED 6 CHAR 50-250V CHASS |
4,311 | - |
|
Datasheet | LD | Bulk | Active | Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 4.000" (101.00mm) | Voltage | - | 50 ~ 250VAC | External | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7ER-NTACHOMETER LCD 4 CHAR PANEL MT |
1,668 | - |
|
Datasheet | H7ER | Box | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7ER-N-BTACHOMETER LCD 4 CHAR PANEL MT |
2,407 | - |
|
Datasheet | H7ER | Bulk | Active | Tachometer | Up | 1kHz | - | 4 | LCD - Black Characters | 0.338" (8.60mm) | No Voltage | - | None Required (Battery Included) | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
